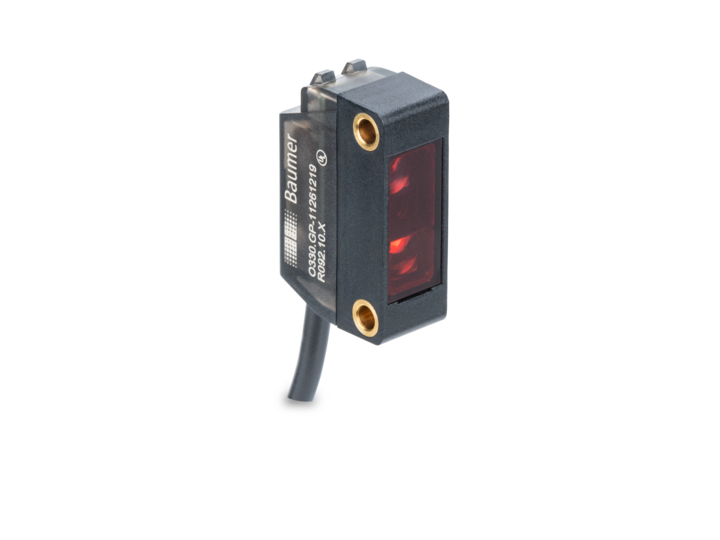

Photo sensor O330.GP-NLNVT.72ZV/T003, BGS 20...350 mm, NPN, 2 m cable, IP67

O330.GP-NLNVT.72ZV/T003 is a miniature photoelectric sensor from the Baumer O330 series with background suppression and a 20...350 mm switching distance. The PinPoint LED produces a small, even light spot with sharp edges, so the sensor also detects small objects and objects close to their edge.

• Switching distance: 20...350 mm, adjustable by qTeach or 1-Step teach-in
• Output: NPN complementary, NO and NC at the same time, light / dark operate, 100 mA
• Supply: 10...30 V DC, typical consumption 25 mA
• Housing: rectangular, plastic (ABS, ASA, PMMA), brass sleeves in the mounting holes, 11 x 32 x 21 mm
• Environment: IP 67, -25...+55 °C
• Connection: 2 m PVC cable, 4 x 0.14 mm²

The sensor suits presence checks on conveyors, assembly stations and packaging machines where mounting space is tight. The brass sleeves in the mounting holes let the screws be tightened without crushing the plastic housing.

Vibration resistance tested to IEC 60068-2-6:2008 (10 g, 10-2000 Hz) and shock resistance to IEC 60068-2-27:2009 (50 g, 11 ms).
