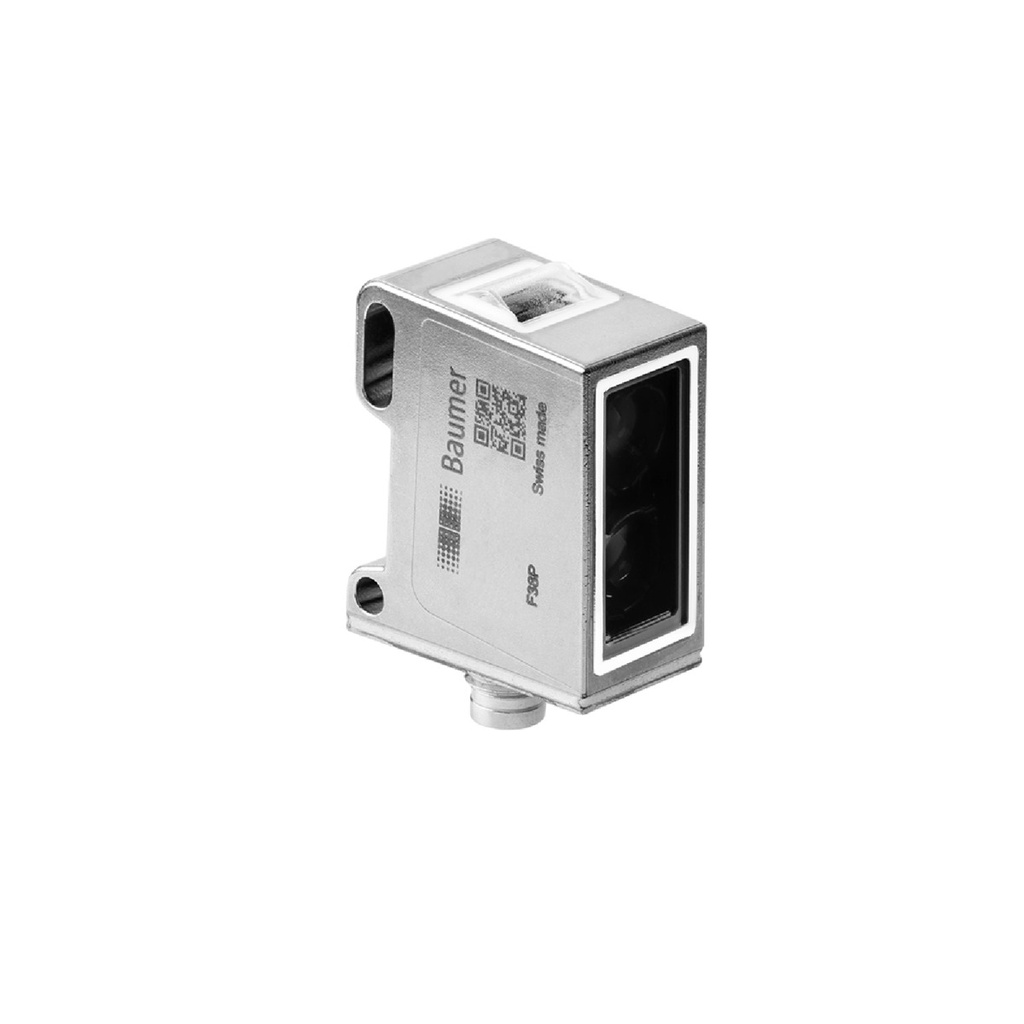

Photo sensor O300W.GP-GW1J.PVN, BGS 30...200 mm, push-pull, IO-Link, stainless steel, IP69K

O300W.GP-GW1J.PVN is a Baumer O300W series photoelectric sensor with background suppression and a 30...200 mm switching distance in a 1.4404 (V4A) stainless steel housing. The housing meets IP 68/69K and proTect+ and carries Ecolab approval, so the sensor does not have to be removed for washdown cycles.

• Switching distance: 30...200 mm, adjustable by teach-in and over IO-Link
• Output: push-pull, light / dark operate, < 100 mA
• Communication: IO-Link V1.1, filter functions, qTeach lock
• Supply: 10...30 V DC, typical consumption 30 mA
• Housing: stainless steel 1.4404 (V4A), PMMA optics, 16.5 x 34.7 x 28.2 mm
• Environment: IP 68/69K and proTect+, Ecolab, -25...+60 °C
• Connection: M8 connector, 4 pin

The sensor suits checks on bottles, cans and packaging in food and beverage production, where machines are washed regularly with hot pressurised water, foam and disinfectants. The switching distance is set with qTeach or over IO-Link, so there are no adjusters on the housing for dirt to collect in.
