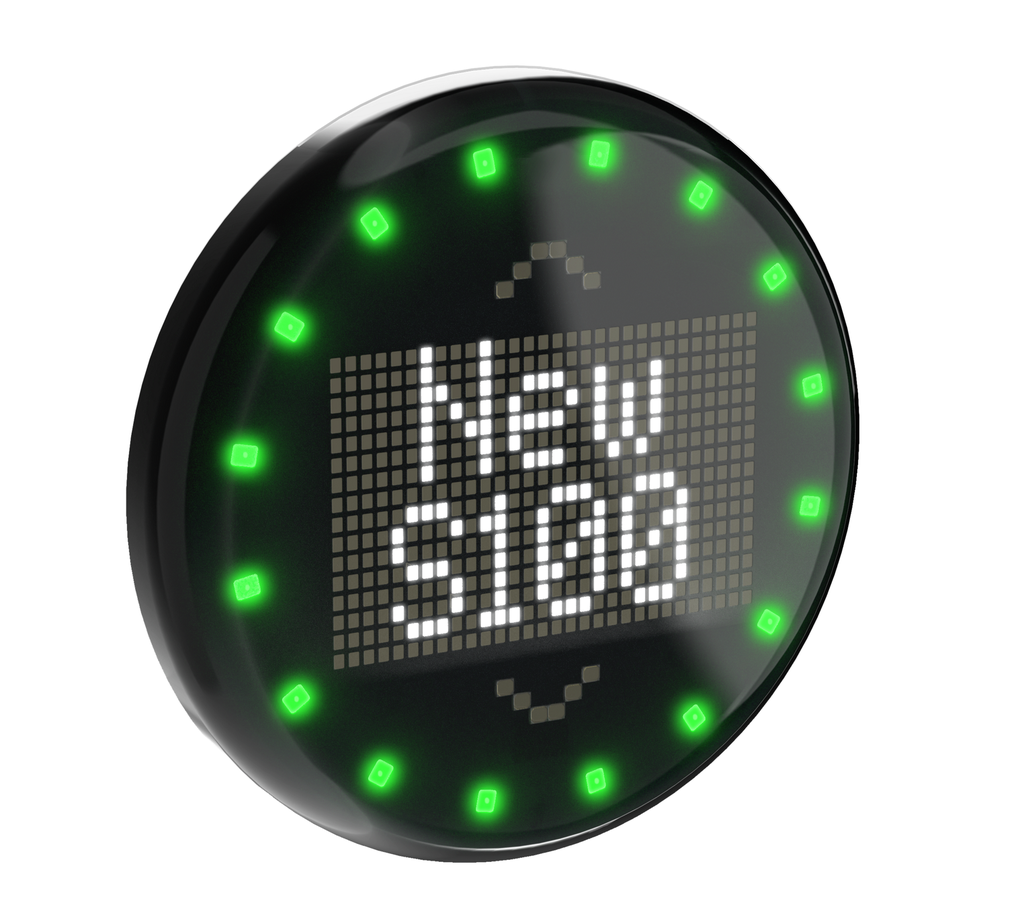

Touch display S100PTVD2WASQ, Modbus RTU, two-row white display, Ø100 mm, 12-30VDC, IP69K, M12 4-pin

S100PTVD2WASQ is a Banner S100 Pro series touch operator display that combines status indication, text and operator input in a single M30 threaded housing. The controller changes text, colours and the meaning of each touch zone at runtime over Modbus RTU, so one unit serves several machine modes without reconfiguration.

• Display: two-row white dot-matrix display, 13 characters per line, 16 RGB LED ring and audible alert
• Control: 5 capacitive touch zones with vibration feedback, response time max. 300 ms
• Communication: Modbus RTU over RS-485, 9600, 19200 and 38400 bit/s
• Supply: 12-30 V DC, 415 mA at 12 V DC, 210 mA at 24 V DC
• Housing: black polycarbonate with tinted window, Ø100 mm, M30x1.5 threaded base, IP66/IP69K, -40...+50°C
• Connection: integral M12 male connector, 4-pin

The display mounts in a Ø30 mm hole at the machine station - pick-to-light positions, takt timer, counter and step confirmation. Prepared modes run without programming, while Modbus registers let the PLC drive each row, colour and the audible alert separately.

CE marked and cULus listed, housing rated UL Type 4X.
