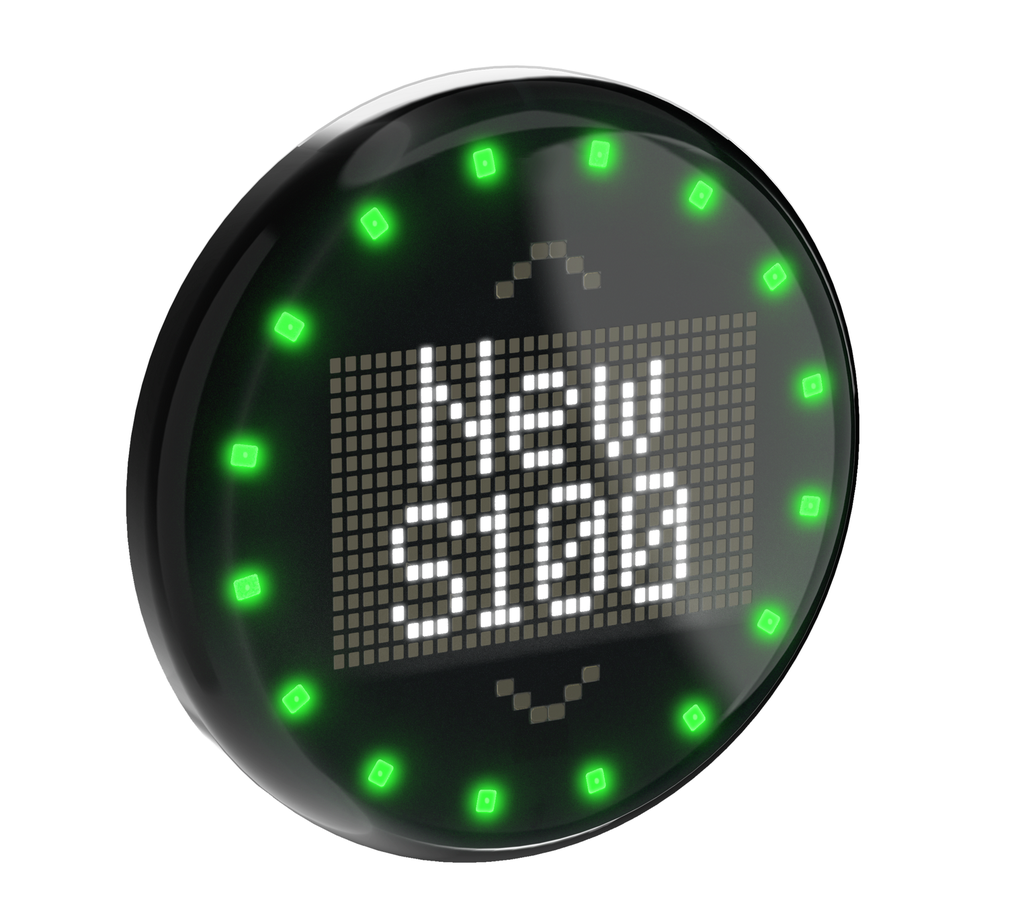

Touch display S100PTVD2WAKQ, IO-Link, two-row white display, Ø100 mm, 18-30VDC, IP69K, M12 4-pin

S100PTVD2WAKQ is a Banner S100 Pro series touch operator display that combines status indication, text and operator input in a single M30 threaded housing. Over IO-Link it connects to a standard master port, carrying process data and parameters on the same unshielded cable, so a replacement unit is re-parameterised by the master rather than by hand.

• Display: two-row white dot-matrix display, 13 characters per line, 16 RGB LED ring and audible alert
• Control: 5 capacitive touch zones with vibration feedback, response time max. 300 ms
• Communication: IO-Link
• Supply: 18-30 V DC, 280 mA at 18 V DC, 210 mA at 24 V DC
• Housing: black polycarbonate with tinted window, Ø100 mm, M30x1.5 threaded base, IP66/IP69K, -40...+50°C
• Connection: integral M12 male connector, 4-pin

The display mounts in a Ø30 mm hole at the machine station - pick-to-light positions, takt timer, counter and step confirmation. Note that this version starts at 18 V DC, not 12 V DC as the other S100 Pro versions.

CE marked and cULus listed, housing rated UL Type 4X.
