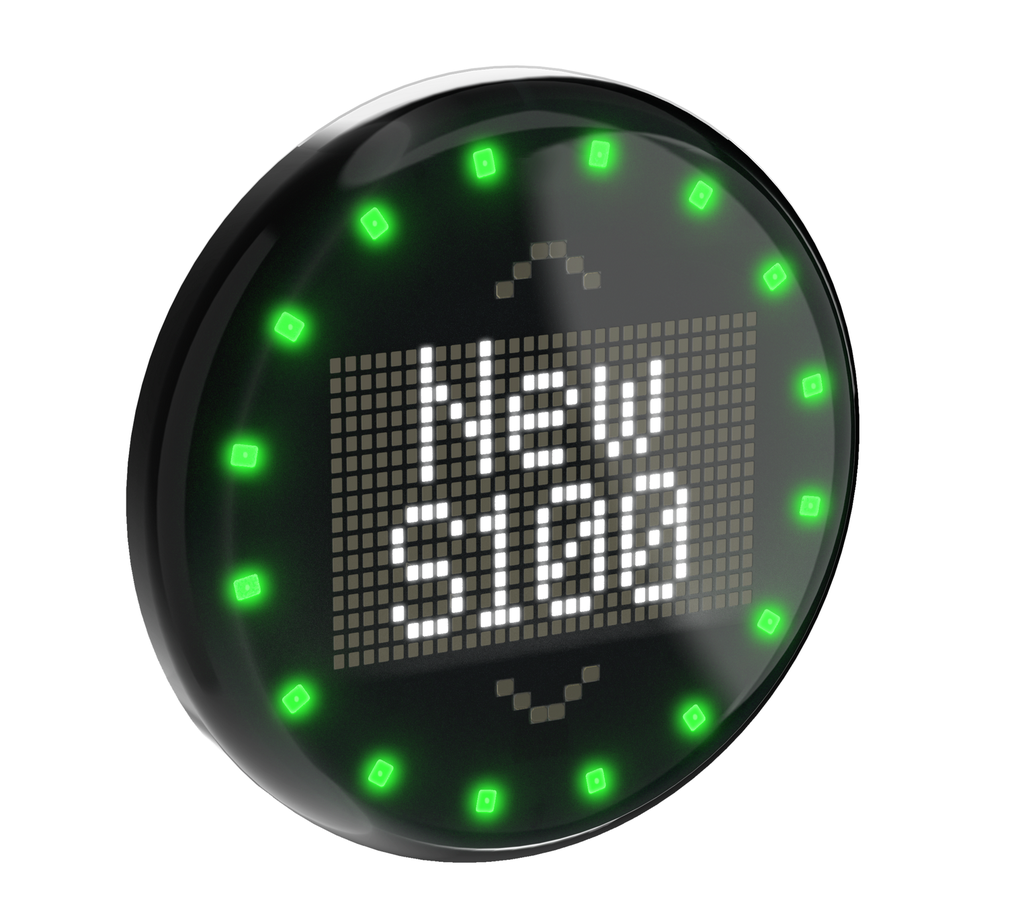

Touch display S100PTVD2WAD2Q, discrete control, two-row white display, Ø100 mm, 12-30VDC, IP69K, M12 5-pin

S100PTVD2WAD2Q is a Banner S100 Pro series touch operator display that combines status indication, text and operator input in a single M30 threaded housing. This version works without an industrial network: the PLC switches states through discrete inputs, while text, colours and animations are loaded into the unit beforehand with Banner Pro Editor.

• Display: two-row white dot-matrix display, 13 characters per line, 16 RGB LED ring and audible alert
• Control: 5 capacitive touch zones with vibration feedback, response time max. 300 ms
• Control signals: discrete inputs, output max. 150 mA
• Supply: 12-30 V DC
• Housing: black polycarbonate with tinted window, Ø100 mm, M30x1.5 threaded base, IP66/IP69K, -40...+50°C
• Connection: integral M12 male connector, 5-pin

The display mounts in a Ø30 mm hole at the machine station - pick-to-light positions, takt timer, counter and step confirmation. The configuration is loaded with Pro Editor before installation, so changing text or colours means disconnecting the unit and connecting it to a PC.

CE marked and cULus listed, housing rated UL Type 4X.
