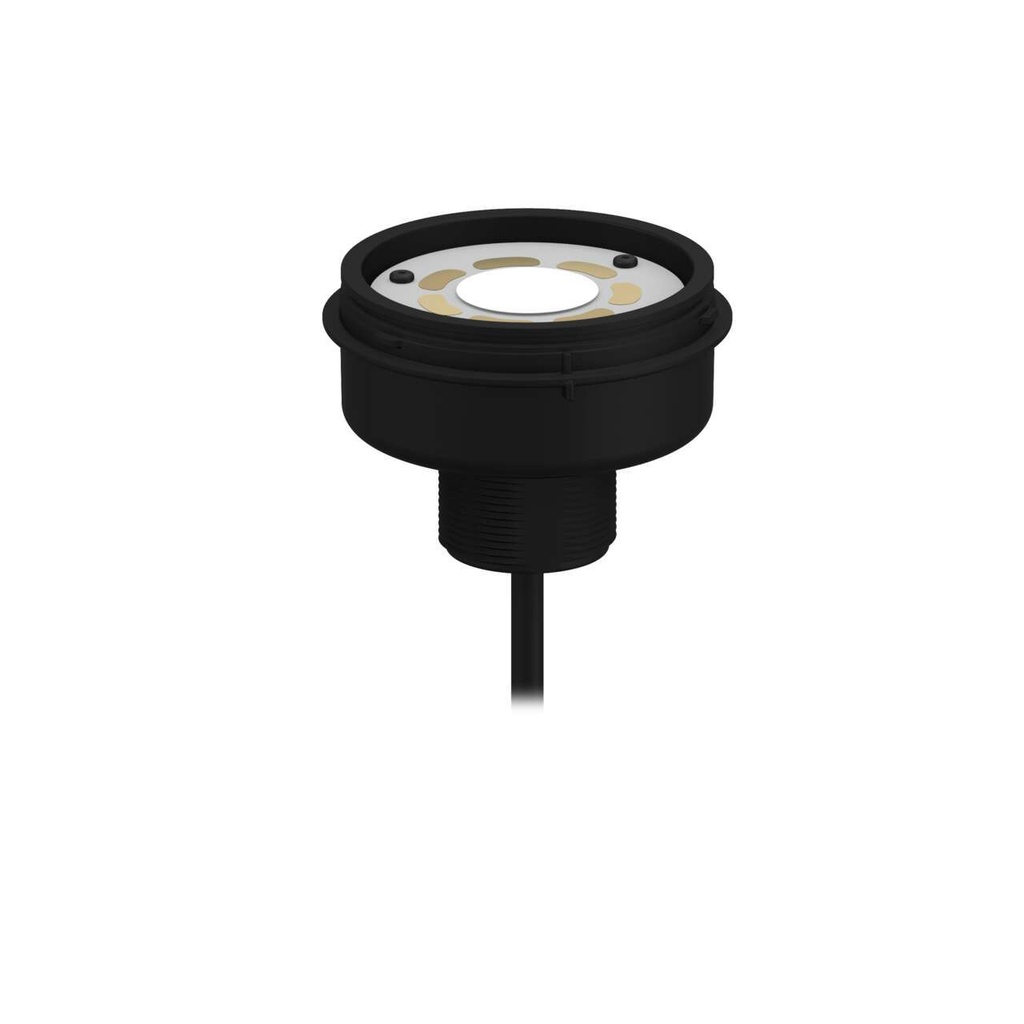

LED indication tower base B-TL70PK-QP, TL70 Pro, IO-Link, up to 6 modules, 18-30VDC, IP65, 150 mm cable with M12

B-TL70PK-QP is the IO-Link base module of the Banner TL70 Pro modular tower light. It carries up to six RGB segments, or five segments plus an audible, and every segment's color, flashing and animation is set over IO-Link.

• Modules: up to 6 SG-TL70P-RGB segments, or 5 segments plus SG-TL70-A, -AL or -AP audible in position 6
• Communication: IO-Link; Basic, Advanced, Run, Level and Gauge modes
• Supply: 18...30 V DC; RGB segment max. 156 mA at 24 V
• Housing: polycarbonate, M30x1.5 thread with nut, 1/2-14 NPT internal, max. 2.25 Nm
• Environment: IP65, UL Type 1, -40...+50 °C
• Connection: 150 mm PVC cable with 4-pin M12 male connector

Light and audible modules are ordered separately and the base needs an IO-Link master port. In Level and Gauge modes the tower shows a process value as a bar of lit segments.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
