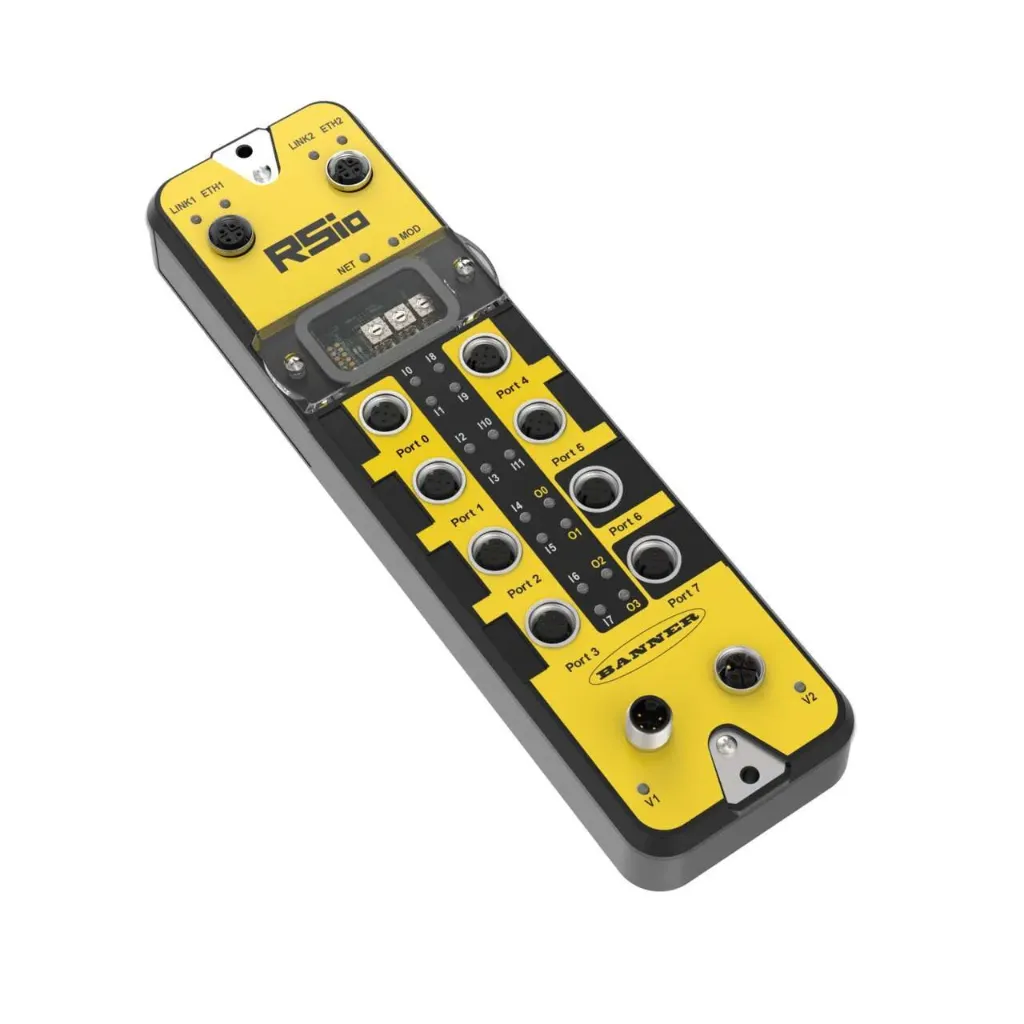

Remote safe I/O block for CIP Safety over EtherNet/IP. Connects up to 6 safety devices with In-Series Diagnostics (ISD) and controls 2 OSSD outputs. Power connection via M12 L-code 5-pin connector. Rated PL e / Category 4 / SIL 3.
Suitable for e-stops, safety gates, light curtains, two-hand controls, and muting applications. Non-safe PNP outputs allow standard device connection on the same block. Configures and monitors via the network - no LCD required.
- 6 configurable safety inputs with ISD
- 2 independently controlled OSSD outputs
- EtherNet/IP / CIP Safety
- Power: M12 L-code, 24 V dc
- IP65 / IP67, -25...+70 °C
