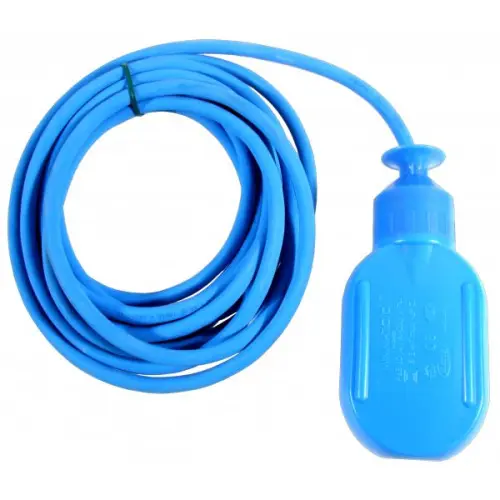

Līmeņa slēdzis, pludiņa tipa, dzeramajam ūdenim WRAS, 10m, histerēze 30deg
Float switch insensitive to humidity and condensation (patented) water resistant up to 100 m deep, with electric contacts commutator, mechanics.
The Inner Chamber Is Filled with Polyurethane Foam against Humidity and Water Condensation
Rated Voltage Max: 10 (4) A 250V a.c.
Microswitch Electrical data: 16 (4) A 250V a.c.
IP:68
Max Water Temperature: 55° C
Max Working Pressure: 10 Bar
Electrical Contact:SPDT com + N.C + N.O
Working Angle: 30°
Single outer casing piece in blow-moulded Polyethylene.
Inner chamber built as a single blow-moulded piece for the commutator and ball seat.
Stainless steel ball.
Non-hygroscopic closed cells injection of expanded polyurethane in the regulator to eliminate air and to seal hermetically the unit.
Max. working pressure 10 bar.
NO COUNTERWEIGHT SUPPLIED - optional
Iekšējā atsauce |
030-652 |
| Kabeļa garums | 10 m |
| Elektriskais pievienojums | Kabeļa savienojums |
| Procesa sensora izeja | Releja |
| Maksimālā darba temperatūra | +50°C |
