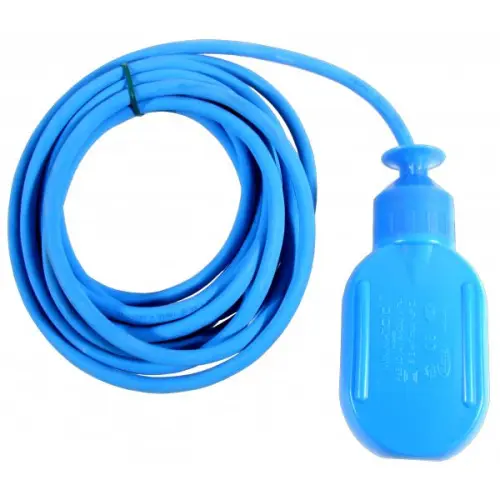

Level switch for drinking water WRAS, 10m, hysteresis 30deg, MAC-3

https://www.willsensors.com/web/image/product.template/871/image_1920?unique=7c52117
Float switch insensitive to humidity and condensation (patented) water resistant up to 100 m deep, with electric contacts commutator, mechanics.
The Inner Chamber Is Filled with Polyurethane Foam against Humidity and Water Condensation
Rated Voltage Max: 10 (4) A 250V a.c.
Microswitch Electrical data: 16 (4) A 250V a.c.
IP:68
Max Water Temperature: 55° C
Max Working Pressure: 10 Bar
Electrical Contact:SPDT com + N.C + N.O
Working Angle: 30°
Single outer casing piece in blow-moulded Polyethylene.
Inner chamber built as a single blow-moulded piece for the commutator and ball seat.
Stainless steel ball.
Non-hygroscopic closed cells injection of expanded polyurethane in the regulator to eliminate air and to seal hermetically the unit.
Max. working pressure 10 bar.
NO COUNTERWEIGHT SUPPLIED - optional

89.00 € 89.0 EUR 89.00 € Tax Excluded

Not Available For Sale

  • Cable lenght
  • Electrical connection
  • Process sensor output
  • Maximum working temperature

This combination does not exist.

Contact Us
Internal Reference
 030-652

Terms and Conditions

Cable lenght 10 m
Electrical connection Cable Connection
Process sensor output Relay
Maximum working temperature +50°C
