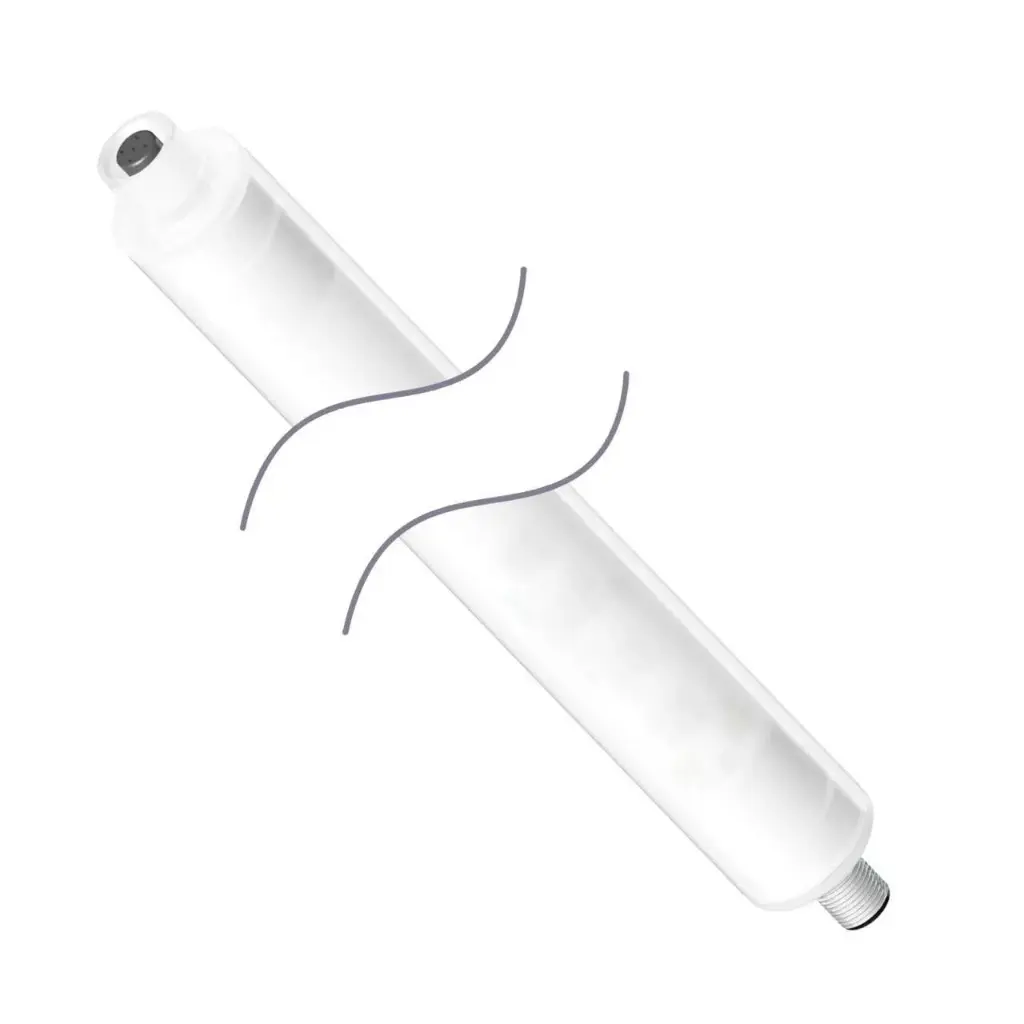

LED strip light WLS27CW285DSQ, cool white, 285 mm, 800 lm, 12-30VDC, IP69K, M12

WLS27CW285DSQ is a Banner WLS27 series 285 mm cool white strip light in an FDA-grade copolyester shell rated up to IP69K. It is a cascade model with a male M12 connector at one end and a female one at the other.

• Light: cool white 6500 K, 800 lm, CRI 85
• Dimming: black wire to supply - 50 % intensity, open or to common - 100 %
• Supply: 12...30 V DC, typical 0.30 A at 24 V, max. 0.8 A
• Housing: anodized aluminum frame, diffused FDA copolyester shell, Ø27 x 360 mm, brackets included
• Environment: IP66, IP67, IP69K, -40...+70 °C, the light dims above +50 °C
• Connection: integral 4-pin M12 male connector

In a cascade at 100 % intensity the total length must not exceed 1.4 m at 12 V DC, 3.0 m at 24 V DC and 3.1 m at 30 V DC; at 50 % intensity the lengths double. Clean only with mild detergent and warm water.

CE compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

Supplied without original packaging.
