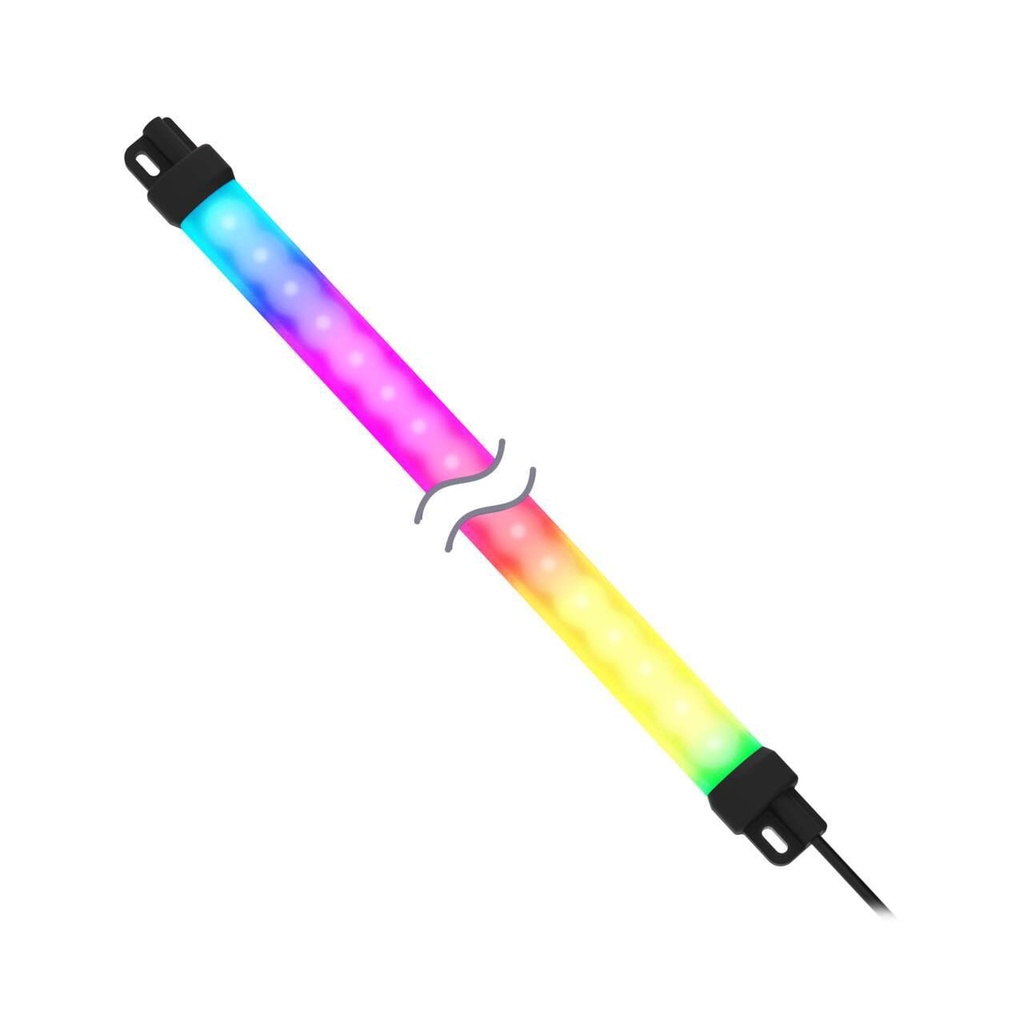

LED strip light WLS15PXRGB0500DSKQP, RGB, IO-Link, 500 mm, 18-30VDC, IP67, M12

WLS15PXRGB0500DSKQP is a Banner WLS15 Pro series 500 mm RGB strip light controlled over IO-Link. Besides color, flashing and intensity it has level, gauge and segment modes, so the strip can show a fill level or up to 10 separate status zones.

• Light: RGB, 19 color options, each LED individually controllable
• Communication: IO-Link, input response time max. 45 ms
• Supply: 18...30 V DC, typical 0.18 A at 24 V, max. 0.255 A
• Housing: polycarbonate with aluminum frame, polyamide end caps, 500 x 30.6 x 15.5 mm, lighted length 426.4 mm
• Environment: IP66, IP67, -40...+50 °C
• Connection: 150 mm PVC cable with 4-pin M12 male connector

Requires an IO-Link master port. If the master cannot supply the required current, Banner specifies a splitter cable and an external power supply.

CE compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
