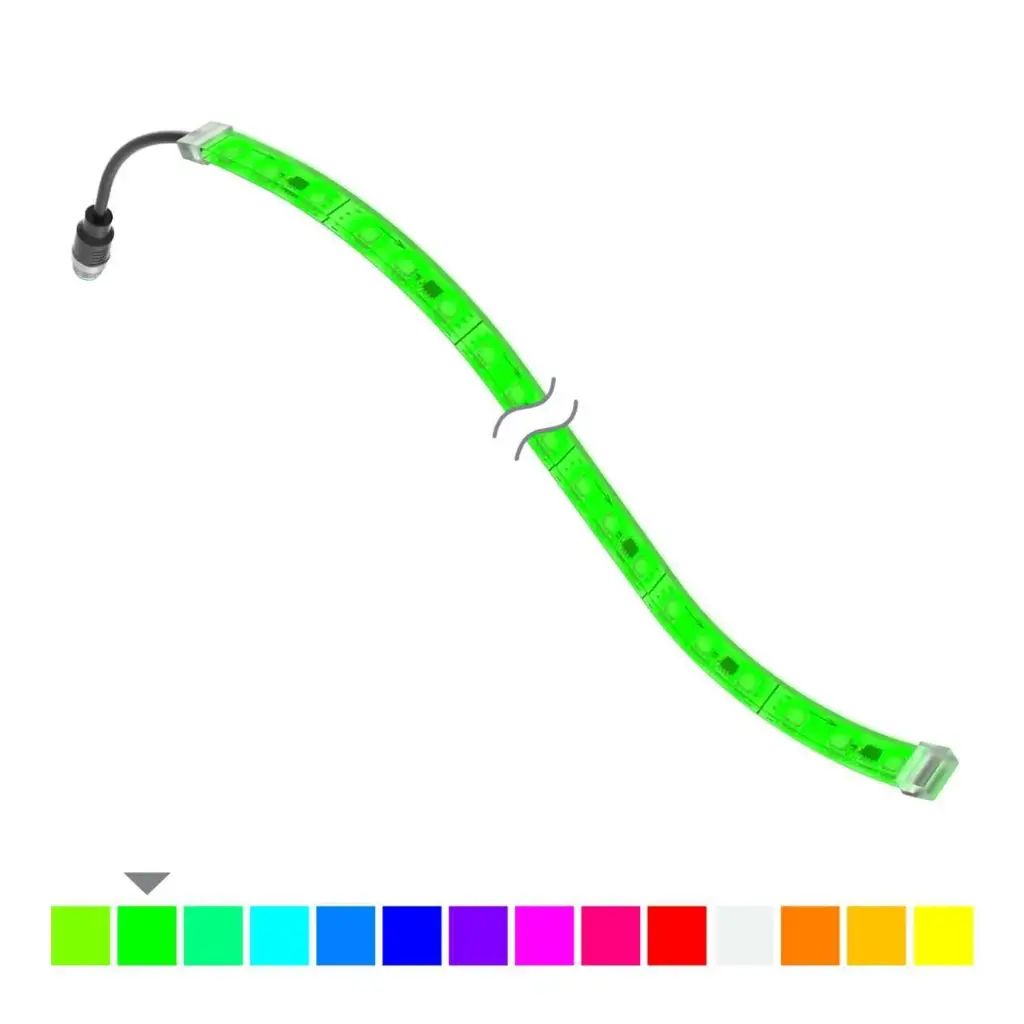

LED strip light WLF12PXRGB1200SQP, RGB, 1200 mm, 12VDC, IP69K, M12 4-pin

WLF12PXRGB1200SQP is a Banner WLF12 Pro series flexible RGB LED strip with a 1200 mm lit length for status indication on machines, AGVs and workstations. Color, flashing, intensity and animations are set through an LC25 LED controller, which can be driven by discrete signals, IO-Link or Modbus.

• Colors: RGB, programmable through the LC25 controller
• Supply: 12 V DC ±10% without controller, 12...30 V DC with LC25 controller; current 0.78 A at 12 V
• Housing: clear silicone, 1225 x 12.8 x 6.4 mm, adhesive tape on the back, minimum bend radius 15 mm
• Environment: IP66, IP67, IP69K, -20...+45 °C
• Connection: 150 mm PVC cable with 4-pin M12 male connector

The strip needs an LC25 LED controller mounted no more than 3.05 m away. A supply above 12 V DC applied directly to the strip damages it permanently. The strip can be shortened at the cut lines every 50 mm, sealing the end with the supplied cap and silicone, but cutting voids the warranty. Not for applications with repeated flexing.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms). Suitable for damp locations per UL 2108.
