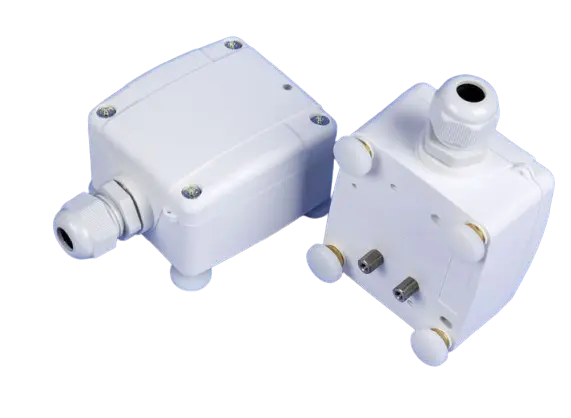

Water leakage detector 24VAC/DC, relay Output
Early detection = Early warning
Detection of water and moisture
Mounting:
- Directly on floor
the WLD 24 have 2 sensing parts (electrode extensions)
under the unit
- On the wall with external water detection tape WDT
Switching output
Relay 60 V / 1 A, potential free changer
Power supply 24 Vac/dc
Sensitivity adjustable via potentiometer
LED status indication
Detection of water and moisture
Mounting:
- Directly on floor
the WLD 24 have 2 sensing parts (electrode extensions)
under the unit
- On the wall with external water detection tape WDT
Switching output
Relay 60 V / 1 A, potential free changer
Power supply 24 Vac/dc
Sensitivity adjustable via potentiometer
LED status indication
Power supply: 24 Vac/dc
Relay output: 60 V / 1 A, potential-free changer
Sensitivity: adjustable via potentiometer
Mounting: directly on the floor with two electrode extensions or on the wall with an external water detection tape (WDT)
LED status indication
Protection class: IP65
Dimensions: 79x69x56 mm, plus 7 mm height for the electrode extensions
Operating conditions: -30°C to +70°C, 0 to 98% relative humidity
Internal Reference |
WLD24 |
