Differential pressure sensor with two measuring ranges (0–250 Pa or 0–500 Pa) for accurate low-pressure monitoring. It provides flexible integration via 0–10 VDC and 4–20 mA analog outputs and runs on 24 V AC/DC. The LED display shows real-time pressure readings, and the response time can be selected to match your system—fast 100 ms feedback or smoother 1 second operation.

Differential pressure sensor with two measuring ranges (0–500 Pa or 0–1000 Pa) for precise air and low-pressure monitoring. It offers both 0–10 VDC and 4–20 mA analog outputs, plus an LED display for instant real-time readings. Powered by 24 V AC/DC, with response time (100 ms or 1 s) to match fast or stable control needs.

Differential pressure sensor with two measuring ranges (0–1000 Pa or 0–2500 Pa) for reliable low-pressure monitoring. It supports both 0–10 VDC and 4–20 mA analog outputs and includes an LED display for real-time pressure readings. Powered by 24 V AC/DC, with response time selectable between 100 ms and 1 second.

Differential pressure sensor with two measuring ranges (0–250 Pa or 0–500 Pa) for accurate low-pressure monitoring. It provides flexible integration via 0–10 VDC and 4–20 mA analog outputs and runs on 24 V AC/DC. No display is included, and the response time can be selected to match your system—fast 100 ms feedback or smoother 1 second operation.

Differential pressure sensor with a wide selection of ranges for both unidirectional (0 to 1000 Pa) and bidirectional measurements (up to ±500 Pa), ideal for accurate low-pressure monitoring. Pressure units (Pa, mmH₂O, mbar, inWG, mmHG, daPa, kPa, hPa) and response time (0.5 / 1 / 2 / 4 s) are selectable via DIP switches, with ±1% accuracy. 0–10 VDC output (3-wire connection), IP54 protection, operating temperature -10°C to +60°C, and storage temperature -10°C to +70°C.

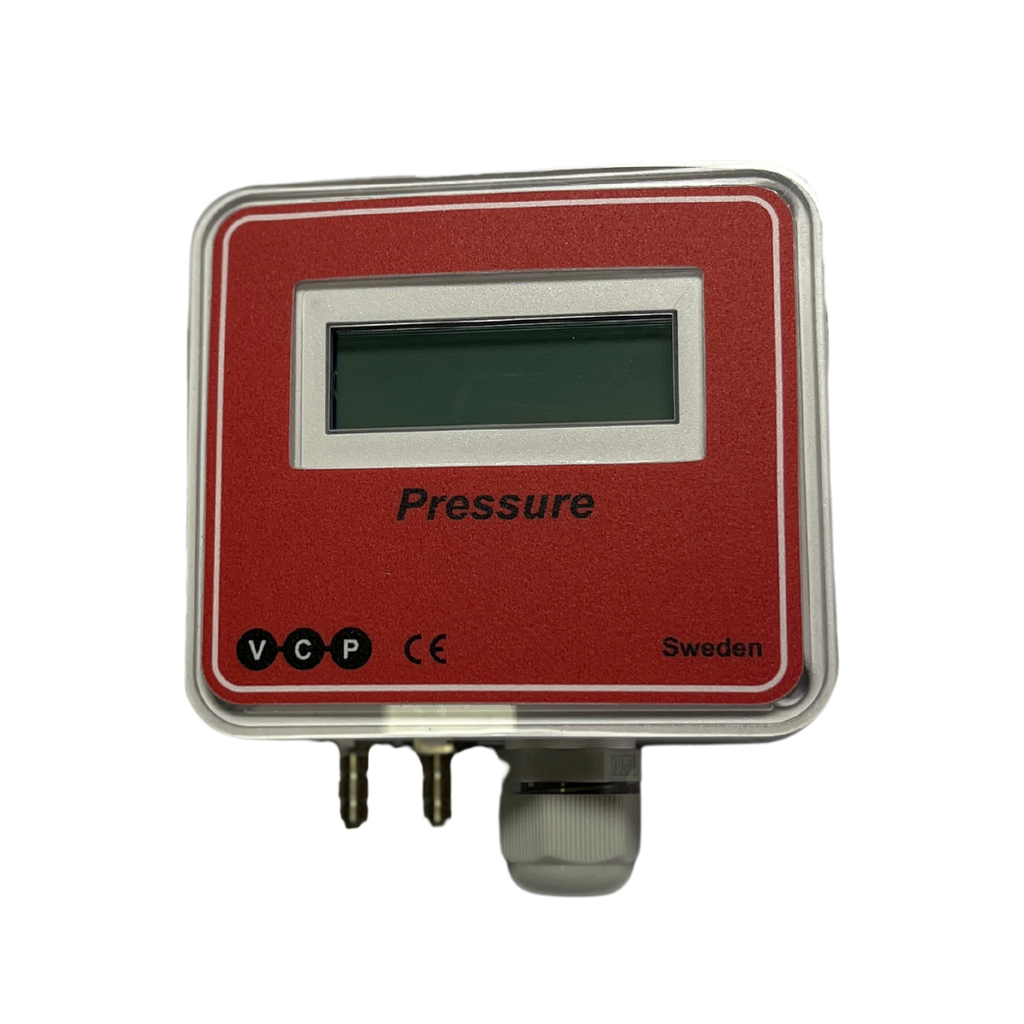

Differential pressure sensor with a wide selection of ranges for unidirectional (0 to 1000 Pa) and bidirectional measurements (up to ±500 Pa), ideal for accurate low-pressure monitoring. Pressure units (Pa, mmH₂O, mbar, inWG, mmHG, daPa, kPa, hPa) and response time (0.5 / 1 / 2 / 4 s) are selectable via DIP switches, with ±1% accuracy. 4–20 mA output (2-wire) with 12–30 VDC supply, IP54 protection and 15 kPa overpressure tolerance, operating temperature -10°C to +60°C, and storage temperature -10°C to +70°C.

Early detection = Early warning
Detection of water and moisture
Mounting:
- Directly on floor
the WLD 24 have 2 sensing parts (electrode extensions)
under the unit

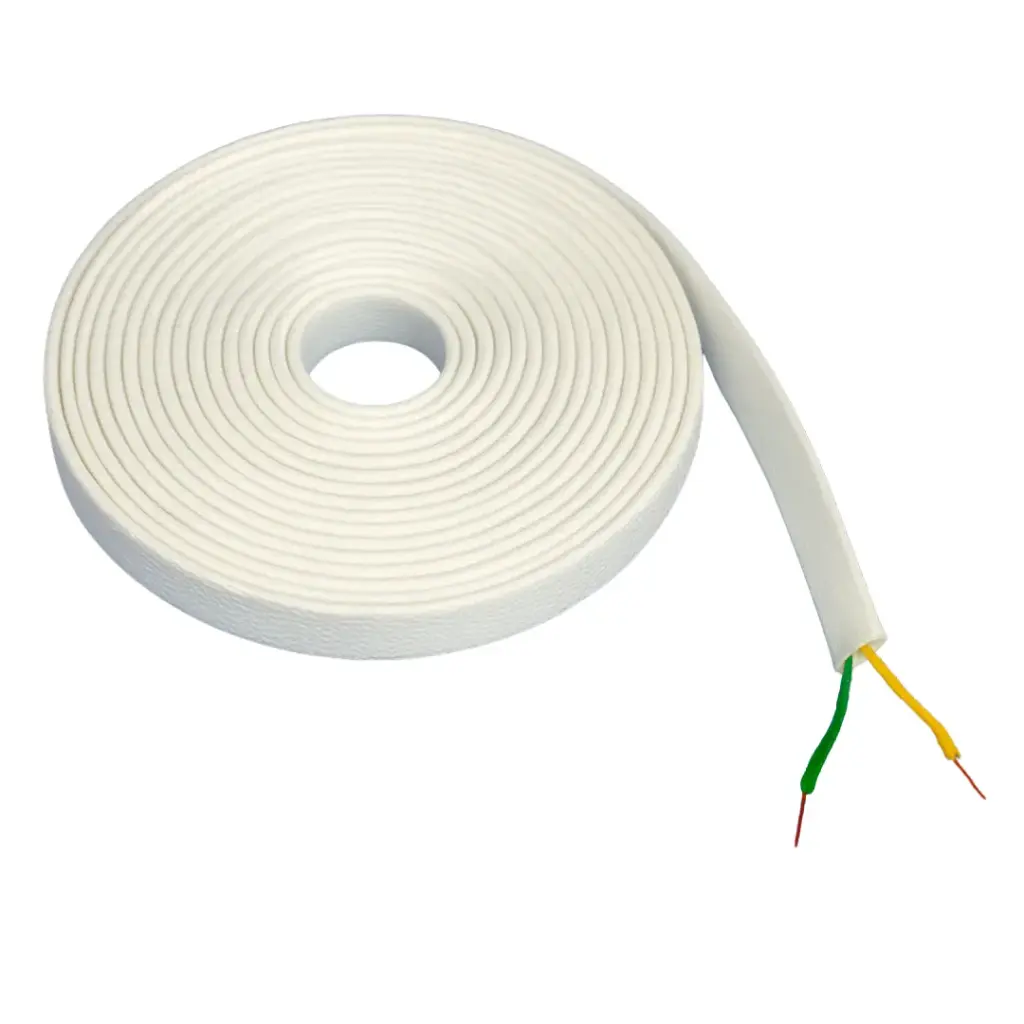

- On the wall with external water detection tape WDT
Switching output
Relay 60 V / 1 A, potential free changer
Power supply 24 Vac/dc
Sensitivity adjustable via potentiometer
LED status indication

Power supply: 24 Vac/dc Relay output: 60 V / 1 A, potential-free changer Sensitivity: adjustable via potentiometer Mounting: directly on the floor with two electrode extensions or on the wall with an external water detection tape (WDT) LED status indication Protection class: IP65 Dimensions: 79x69x56 mm, plus 7 mm height for the electrode extensions Operating conditions: -30°C to +70°C, 0 to 98% relative humidity

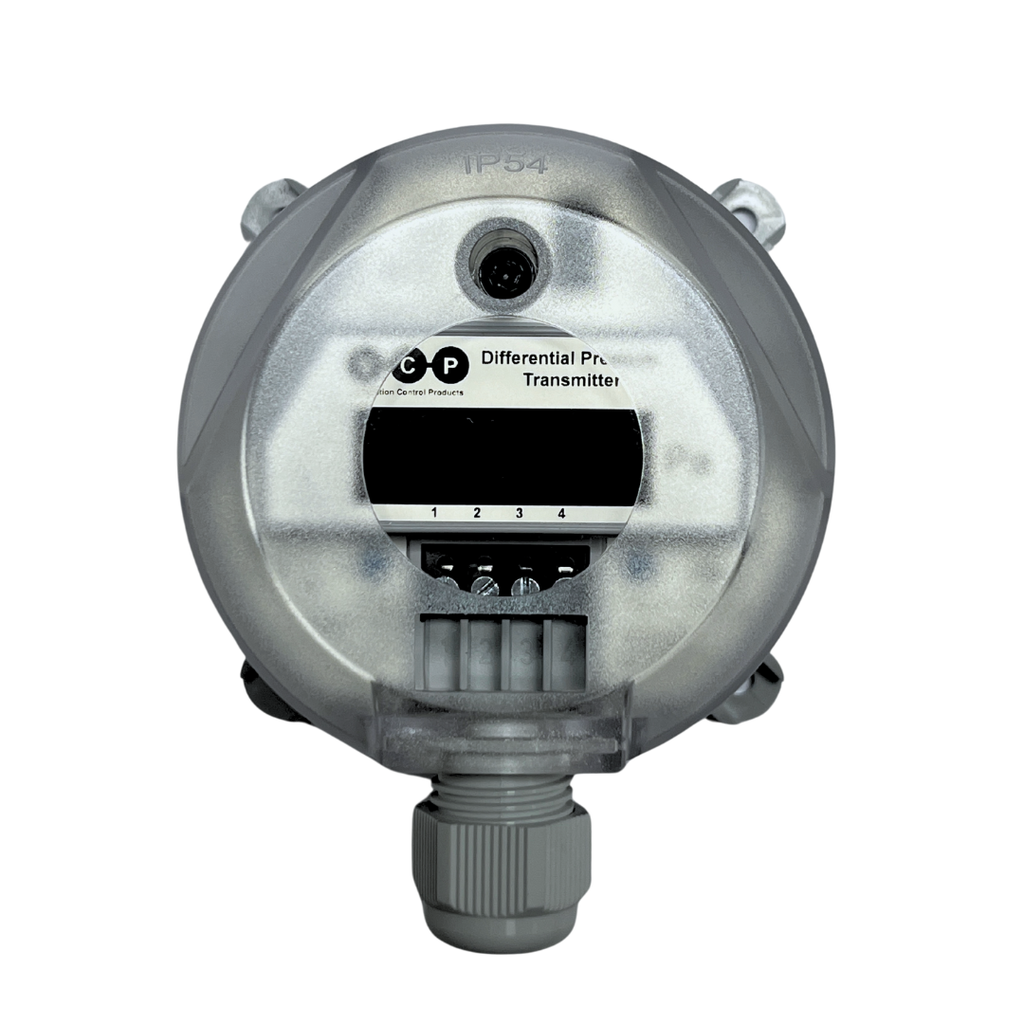

Differential pressure sensor with two measuring ranges (0–5000 Pa or 0–10000 Pa) for dependable mid-range pressure monitoring. It provides flexible integration via 0–10 VDC and 4–20 mA analog outputs and runs on 24 V AC/DC. The LED display shows real-time pressure readings, and the response time can be selected to match your system—fast 100 ms feedback or smoother 1 second operation.

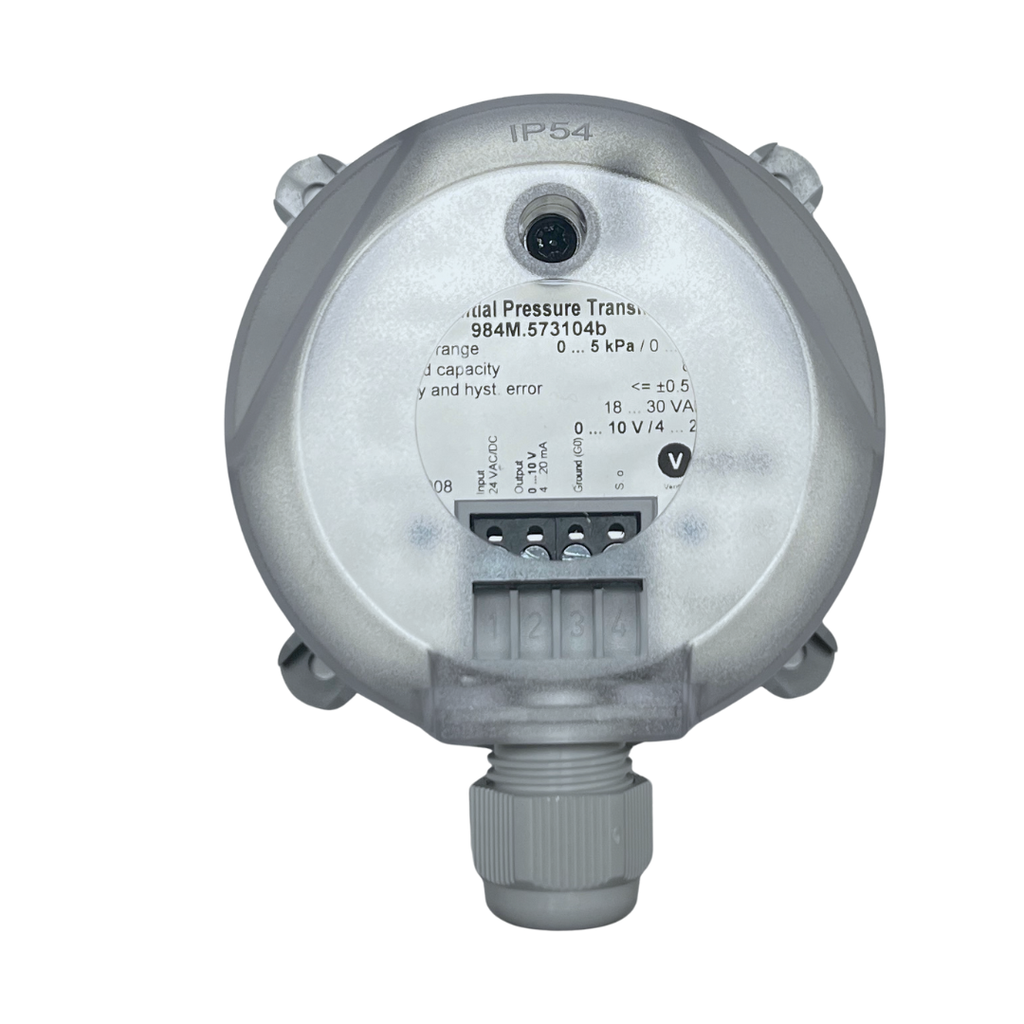

Differential pressure sensor with two measuring ranges (0–5000 Pa or 0–10000 Pa) for dependable mid-range pressure monitoring. It provides flexible integration via 0–10 VDC and 4–20 mA analog outputs and runs on 24 V AC/DC. Choose the response time that fits your system—fast 100 ms feedback or smoother 1 second operation.

Differential pressure sensor with two measuring ranges (0–100 Pa or 0–250 Pa) for accurate low-pressure monitoring. It provides flexible integration via 0–10 VDC and 4–20 mA analog outputs and runs on 24 V AC/DC. The LED display shows real-time pressure readings, and the response time can be selected to match your system—fast 100 ms feedback or smoother 1 second operation.
