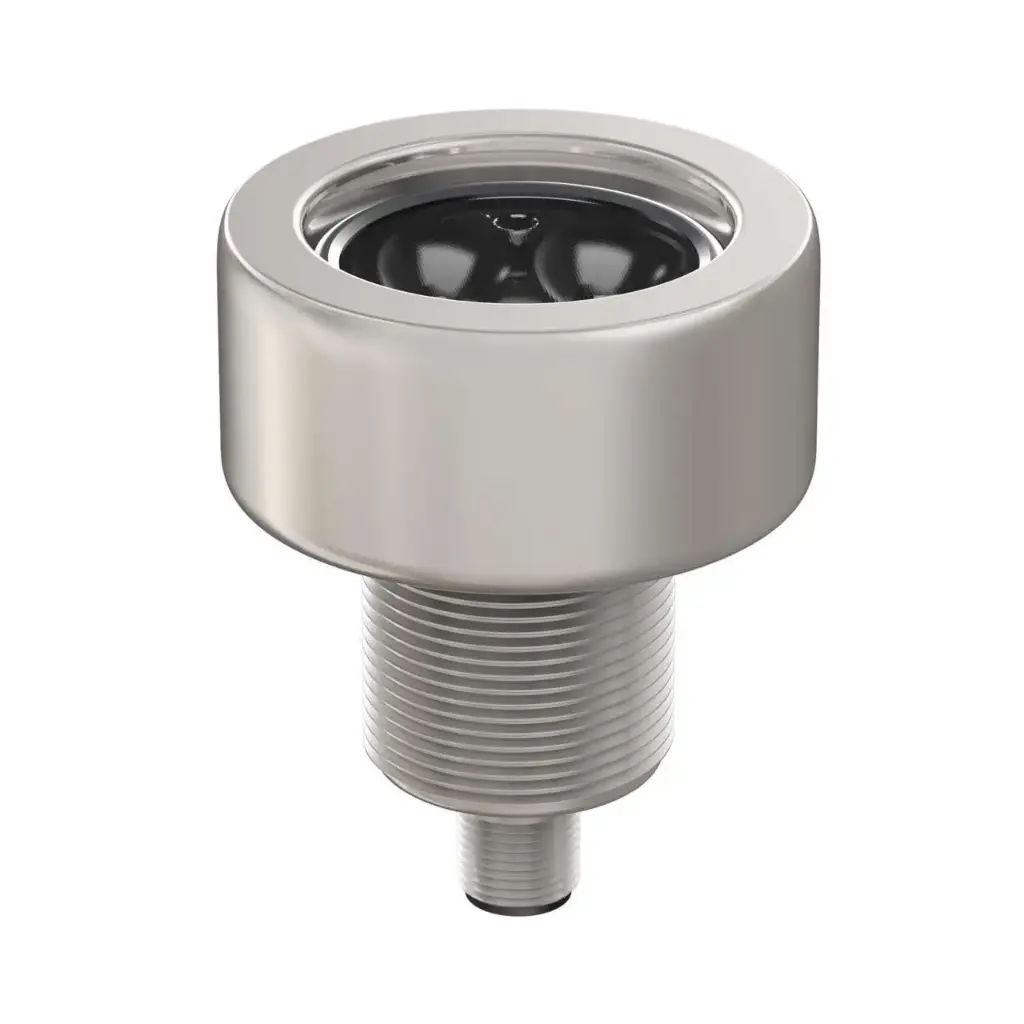

LED spotlight WL50SWSSL5Q, white, ±5°, 295 lm, stainless steel, IP69K, M12

WL50SWSSL5Q is a Banner WL50S series LED spotlight with a 316 stainless steel housing and a ±5° lens, giving the smallest, most focused spot in the series. The light comes from three high-intensity white LEDs.

• Light: white 5000...8300 K, 295 lm; 13,780 lx at 0.5 m and 3,445 lx at 1 m
• Supply: 12...30 V DC, up to 400 mA
• Housing: 316 stainless steel, polycarbonate window with Viton seal, M30x1.5 base with stainless steel nut, Ø56 mm
• Environment: IP67, IP69K, -20...+50 °C
• Connection: integral 5-pin M12 male connector, only 2 wires used
• Useful life: light output drops by less than 30% after 50,000 hours

The narrow beam lights a specific work area on a machine, and the housing is chemically resistant and built for washdown machinery. The base gasket is FDA-grade silicone. The cable must not be hit with a high-pressure spray.

Vibration per MIL-STD-202F (Method 201A), shock per IEC 60947-5-2 (30 G, 11 ms).
