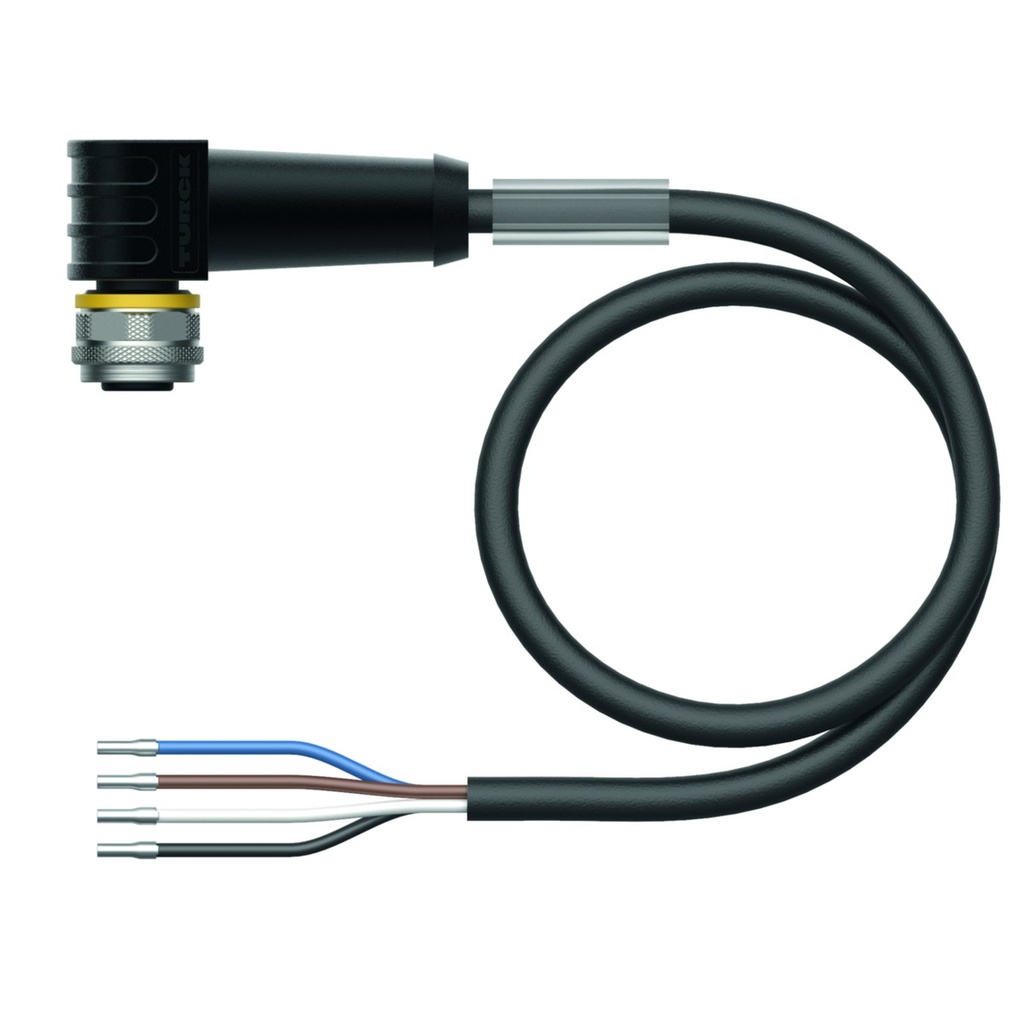

Connection cable WKS4.4T-10/TEL, M12, female, angled, 4-pin, 10m PVC, shielded

WKS4.4T-10/TEL is a TURCK shielded connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PVC, black, Ø 5.4 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, 0...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS.

Approval: cULus.
