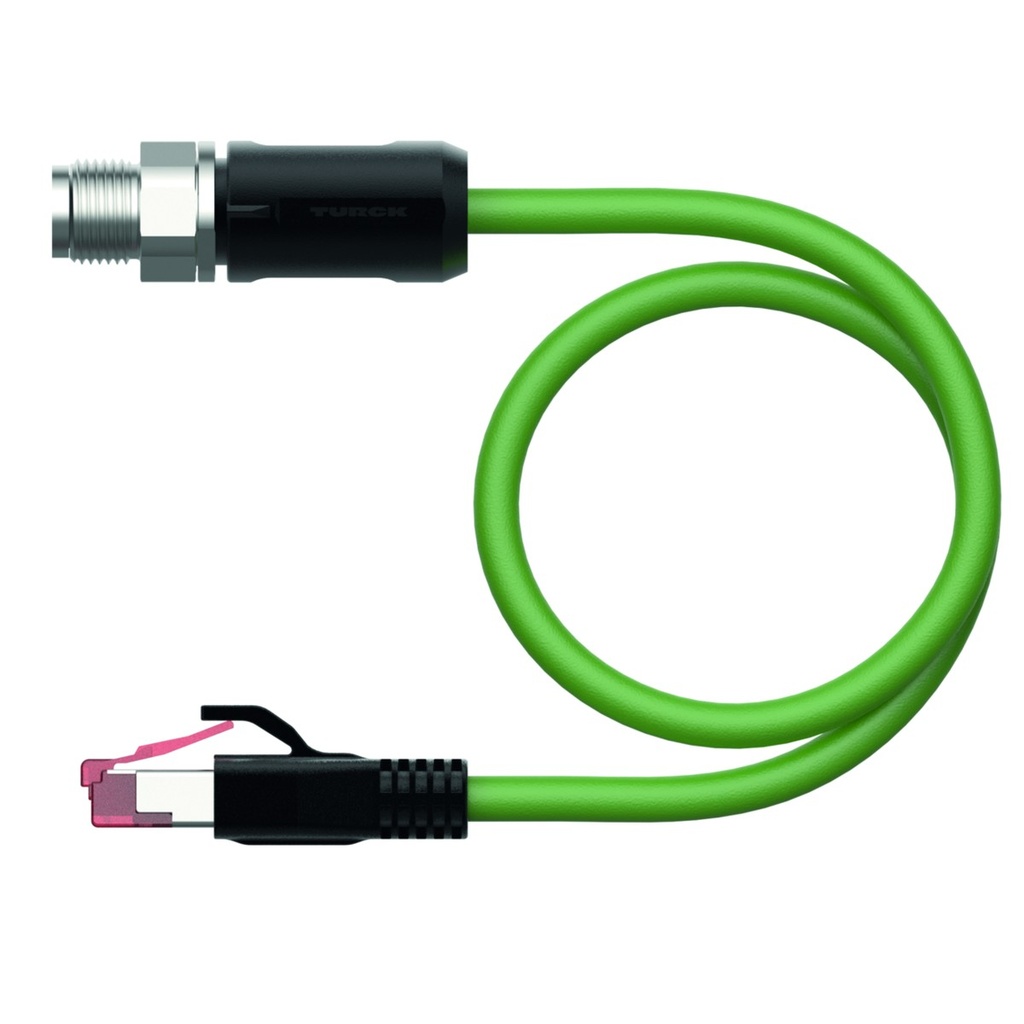

Connection cable RSSX-RJ45S-8814-3M, M12 X-coded male straight / RJ45 male straight, 8-pin, 3m PUR, shielded

RSSX-RJ45S-8814-3M is a TURCK Industrial Ethernet cable with a straight M12 X-coded male connector on one end and a straight RJ45 male plug on the other (8-pin). The cable is paired, shielded and rated CAT 6A.

• Connectors: M12 male, straight, X-coded / RJ45 male, straight; 8-pin, gold-plated brass (CuZn) contacts
• Cable: 3 m, PUR, green, Ø 8.9 mm, 8 x 0.14 mm² (AWG 26), paired and shielded
• Ratings: 0.5 A, 30 V AC / 42 V DC; CAT 6A
• Housing: black TPU, nickel-plated zinc die-cast (GD-Zn) coupling nut
• Environment: M12 IP67 (only when screwed in), RJ45 IP20; -40...+80°C fixed and mobile
• Bending radius: ≥5 x Ø fixed, ≥10 x Ø flexible; suitable for drag chains

The green PUR jacket is UV resistant, oil resistant per DIN EN 60811-404, flame retardant per IEC 60332-2 and PVC free; RoHS compliant. Approval: cULus.
