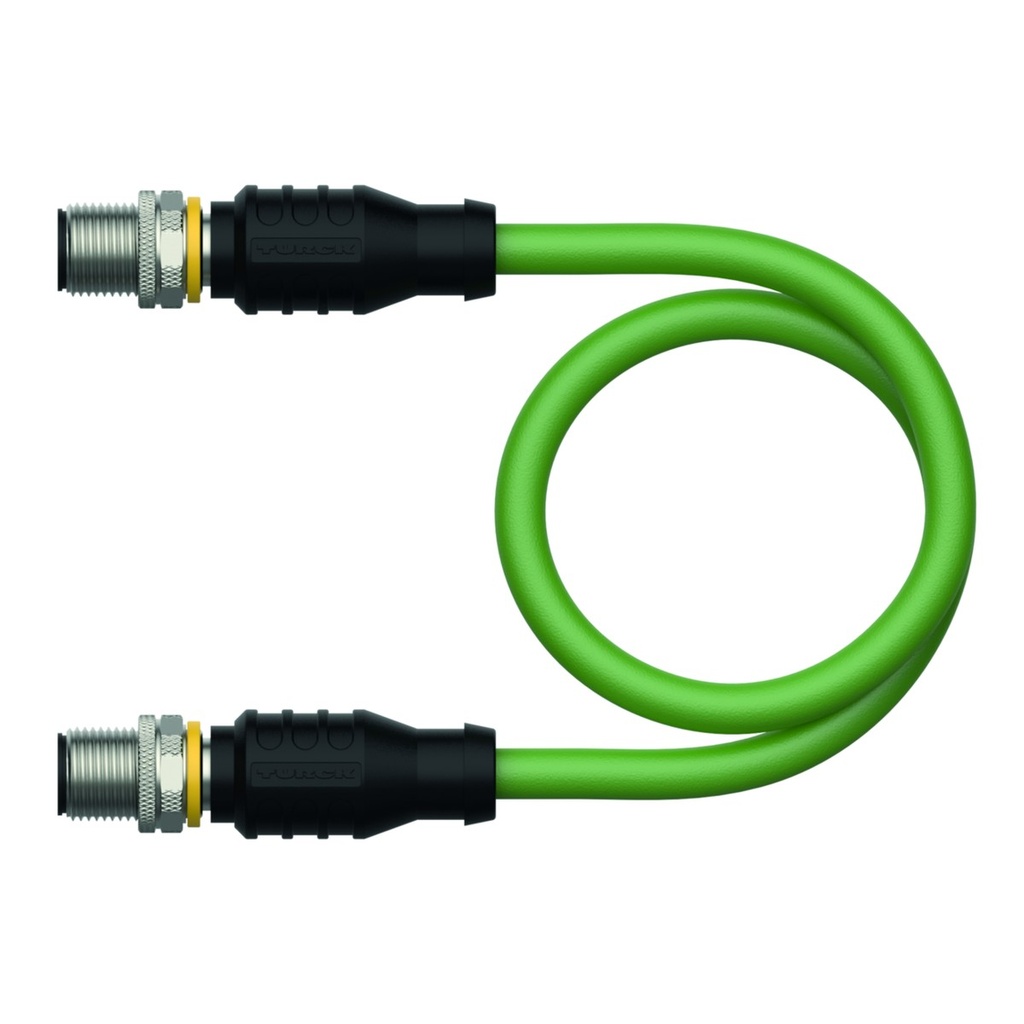

Connection cable RSSD-RSSD-4422-0.3M, M12 D-coded male straight / M12 D-coded male straight, 4-pin, 0.3m PUR, shielded

RSSD-RSSD-4422-0.3M is a TURCK Industrial Ethernet cable with a straight M12 male connector on one end and a straight M12 male connector on the other (4-pin). The 4-wire CAT 5e cable carries 100 Mbit/s Ethernet and PROFINET.

• Connectors: M12 x 1 male, straight, D-coded / M12 x 1 male, straight, D-coded; 4-pin
• Cable: 0.3 m, PUR, green, Ø 6.5 mm, 4 x 0.32 mm², core colours WH, YE, BU, OG, overall shield of aluminium foil and tinned copper braid
• Ratings: 4 A, 30 V; CAT 5e, impedance 100 Ω, capacitance 50 pF/m
• Housing: TPU, nickel-plated brass coupling nuts
• Environment: IP67 (only when screwed in); -40...+80°C fixed, -30...+80°C mobile
• Drag chain: at least 5 million bending cycles, bending radius ≥15 x Ø, torsion ±180°/m

The green PUR jacket is halogen free (IEC 60754), oil resistant (IEC 60811-2-1) and flame retardant (IEC 60332-1-2); the cable is RoHS compliant and PNO compliant for PROFINET. Approval: UL Listed.
