Connection cable RSSD-RKSD-4416-5M, Ethernet CAT5e, M12 D-coded, female/male, straight, 4-pin, 5m PUR, shielded

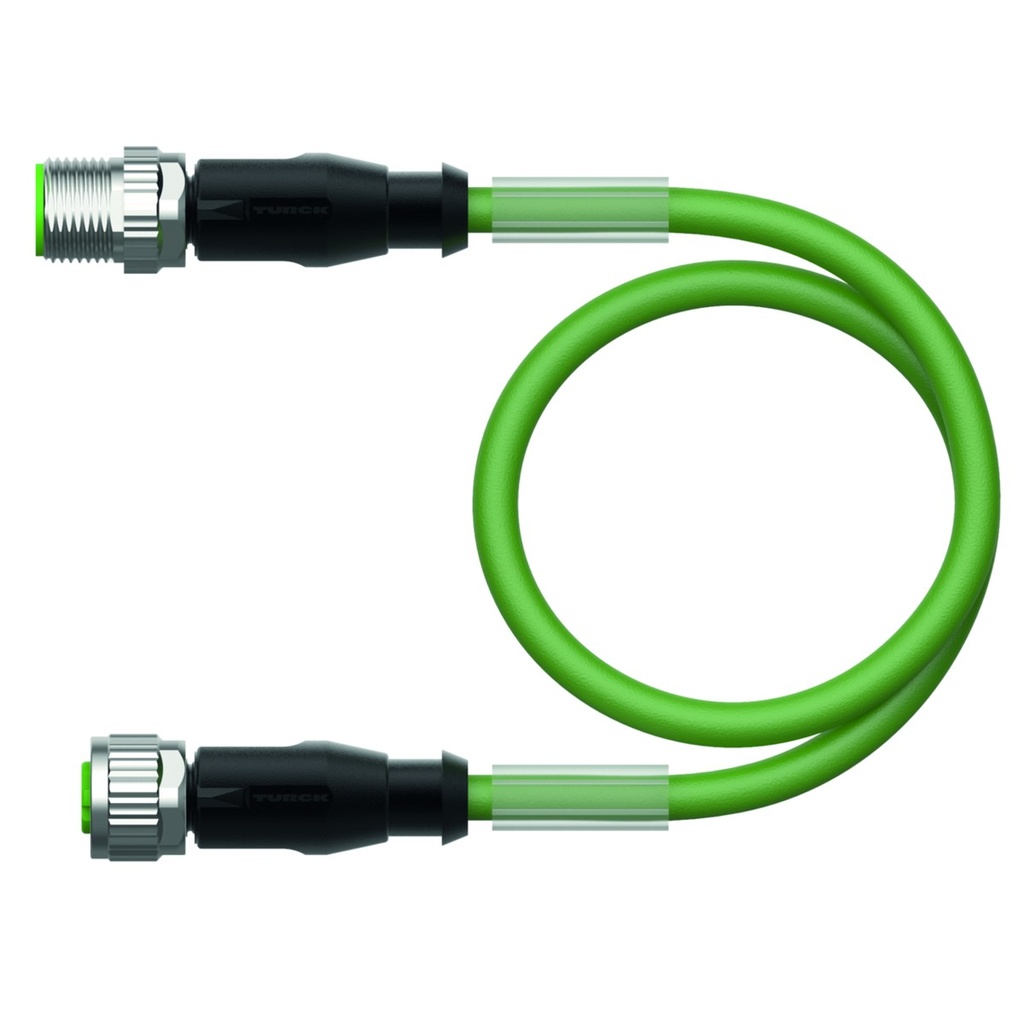

RSSD-RKSD-4416-5M is a TURCK shielded Industrial Ethernet/PROFINET cable (CAT5e) with a straight M12 male connector on one end and a straight M12 female connector on the other (4-pin, D-coded). The cable is PNO (PROFINET) compliant.

• Connectors: M12 x 1 male / female, straight, D-coded, 4-pin, gold-plated CuZn contacts
• Cable: 5 m, PUR, green, Ø 6.5 mm, 4 x 0.32 mm² (AWG 22), core colours WH, YE, BU, OG
• Shield: overlapping aluminium foil and tinned copper wire
• Electrical: 3 A, 48 V, impedance 100 Ω (1 MHz), capacitance 50 pF/m
• Housing: TPU, nickel-plated GD-Zn coupling nuts, FPM/FKM seal; tightening torque 0.4...0.6 Nm
• Environment: IP67 (only when screwed in); -50...+70°C fixed, -20...+60°C mobile

The cable is rated for drag chains (at least 3 million bending cycles, bending radius ≥15 x Ø, up to 100,000 torsion cycles). It is oil resistant per IEC 60811-2-1 and UL13, halogen free per IEC 60754, flame retardant per IEC 60332-1-2 and UL2556 VW1, and PVC free.

UL Listed, RoHS compliant.
