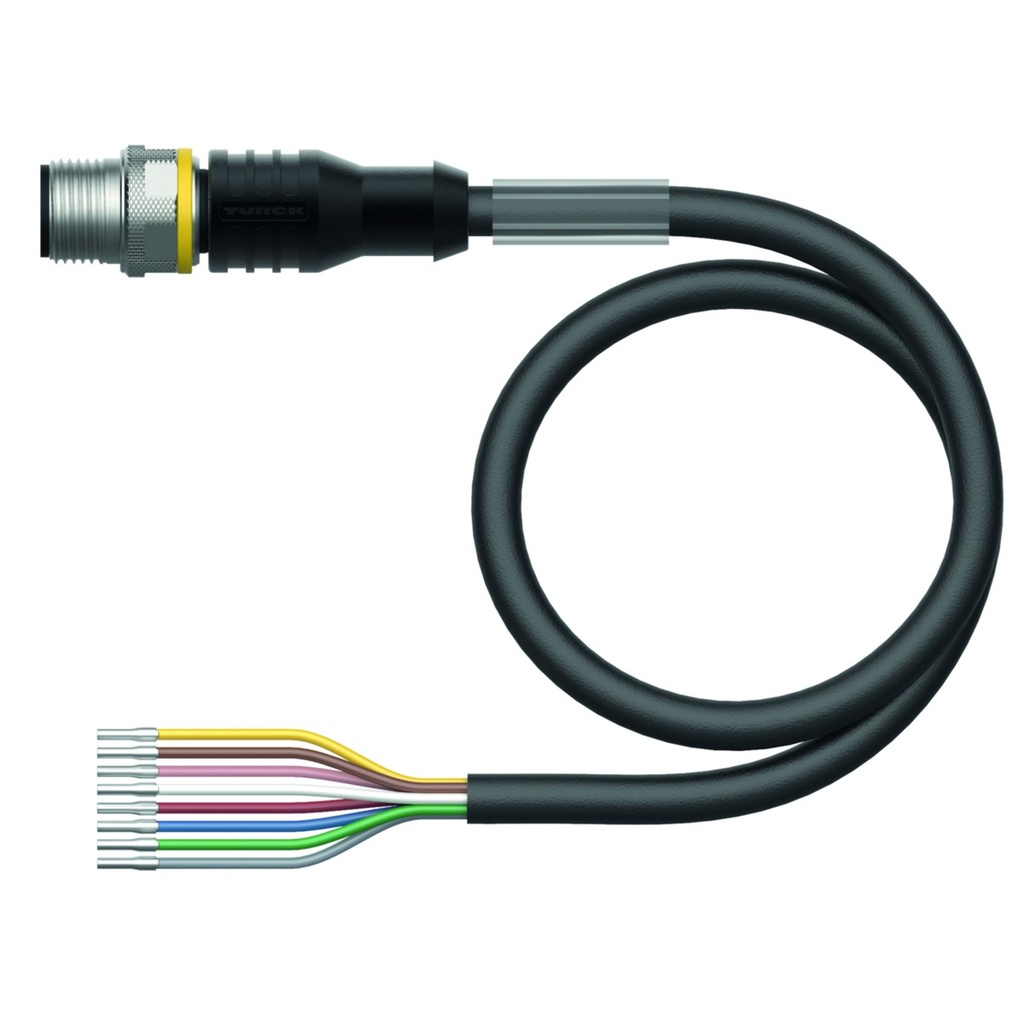

Connection cable RSC8.800T-1/TXL, M12, male, straight, 8-pin, 1m PUR

RSC8.800T-1/TXL is a TURCK connection cable with a straight M12 male connector (A-coded, 8-pin) on one end and open cores on the other.

• Connector: M12 x 1, male, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 1 m, PUR, black, Ø 5.8 mm, 8 x 0.25 mm², core colours WH, BN, GN, YE, GY, PK, BU, RD
• Ratings: 2 A, 30 V, test voltage 2000 V, more than 100 mating cycles
• Housing: black TPU, nickel-plated brass coupling nut
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

Contact assignment follows DIN EN 60947-5-2 (production from CW16/2017).

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.
