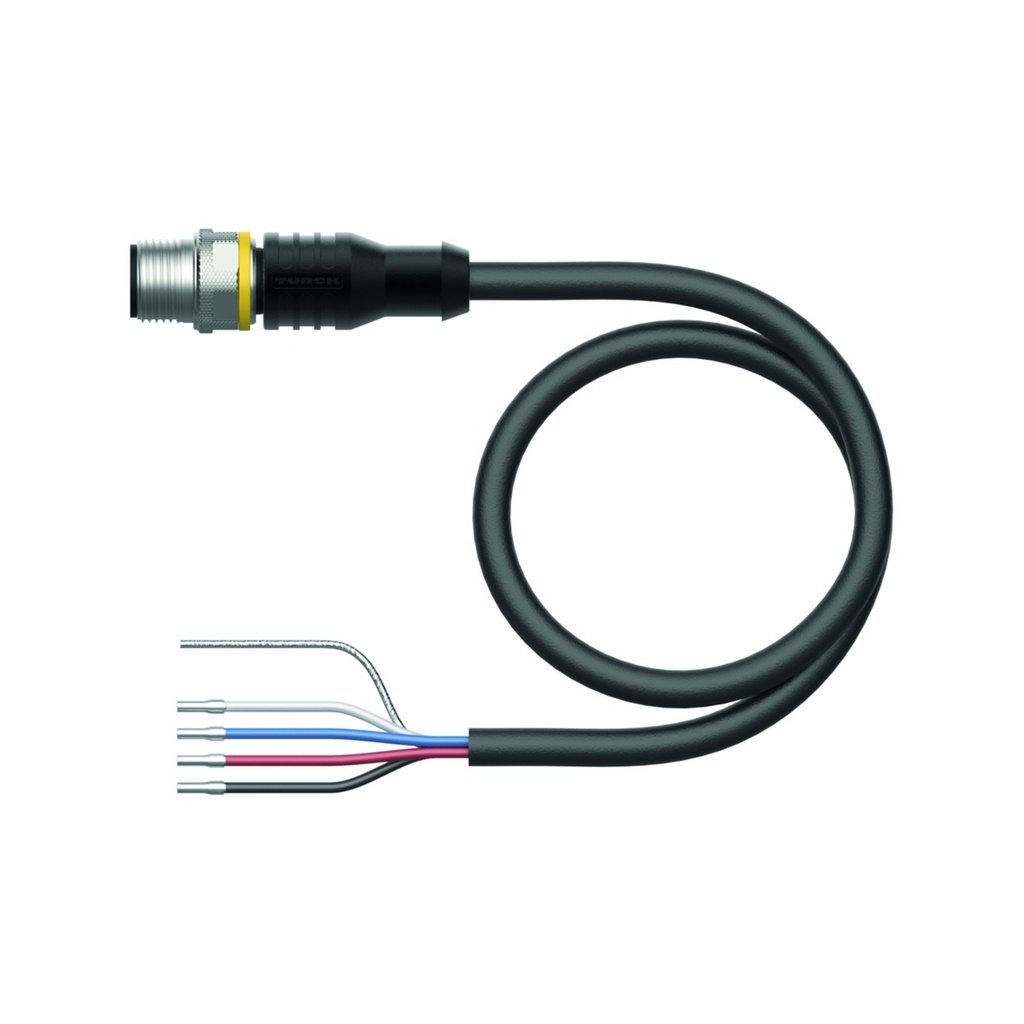

Connection cable RSC5701-5M, CANopen/DeviceNet, M12, male, straight, 5-pin, 5m PUR, shielded

RSC5701-5M is a TURCK shielded CAN bus cable (DeviceNet, CANopen) with a straight M12 male connector (5-pin, A-coded) on one end and open cores on the other. The cable carries a separate power pair and a data pair with 120 Ω impedance.

• Connector: M12 x 1, male, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, anthracite, Ø 6.7 mm, shielded; power pair AWG 22 (RD, BK), data pair AWG 24 (WH, BU)
• Electrical: 4 A, 60 V, impedance 120 Ω (1 MHz), capacitance 37 pF/m, loop resistance 82 Ω/km
• Housing: TPU, nickel-plated brass coupling nut
• Environment: IP67 (only when screwed in); -40...+80°C fixed, -25...+60°C mobile

The cable is suitable for drag chains (at least 5 million bending cycles, up to 3 m/s, bending radius ≥10 x Ø). It is oil resistant per VDE 0472-803, flame retardant per VDE 0472-804/B, UV resistant and free from halogen and LABS.

Approval: UL.
