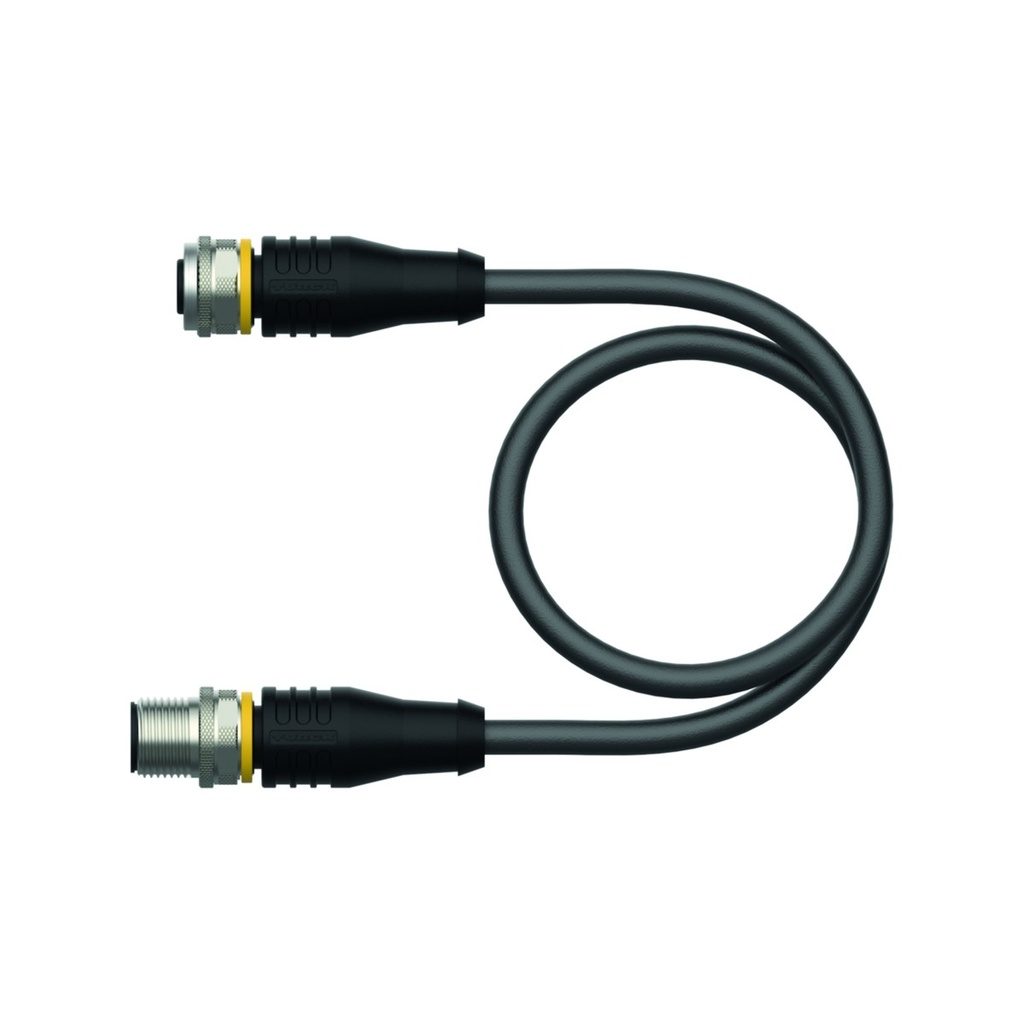

Connection cable RKS8T-25-RSS8T/TXL, M12, female/male, straight, 8-pin, 25m PUR, shielded

RKS8T-25-RSS8T/TXL is a TURCK shielded M12 connection cable with a straight female connector on one end and a straight male connector on the other (8-pin, A-coded). The cable shield is connected to the coupling nuts.

• Connectors: M12 x 1 female / male, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 25 m, PUR, black, Ø 6.3 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Shield: aluminium foil and tinned copper wire
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.
