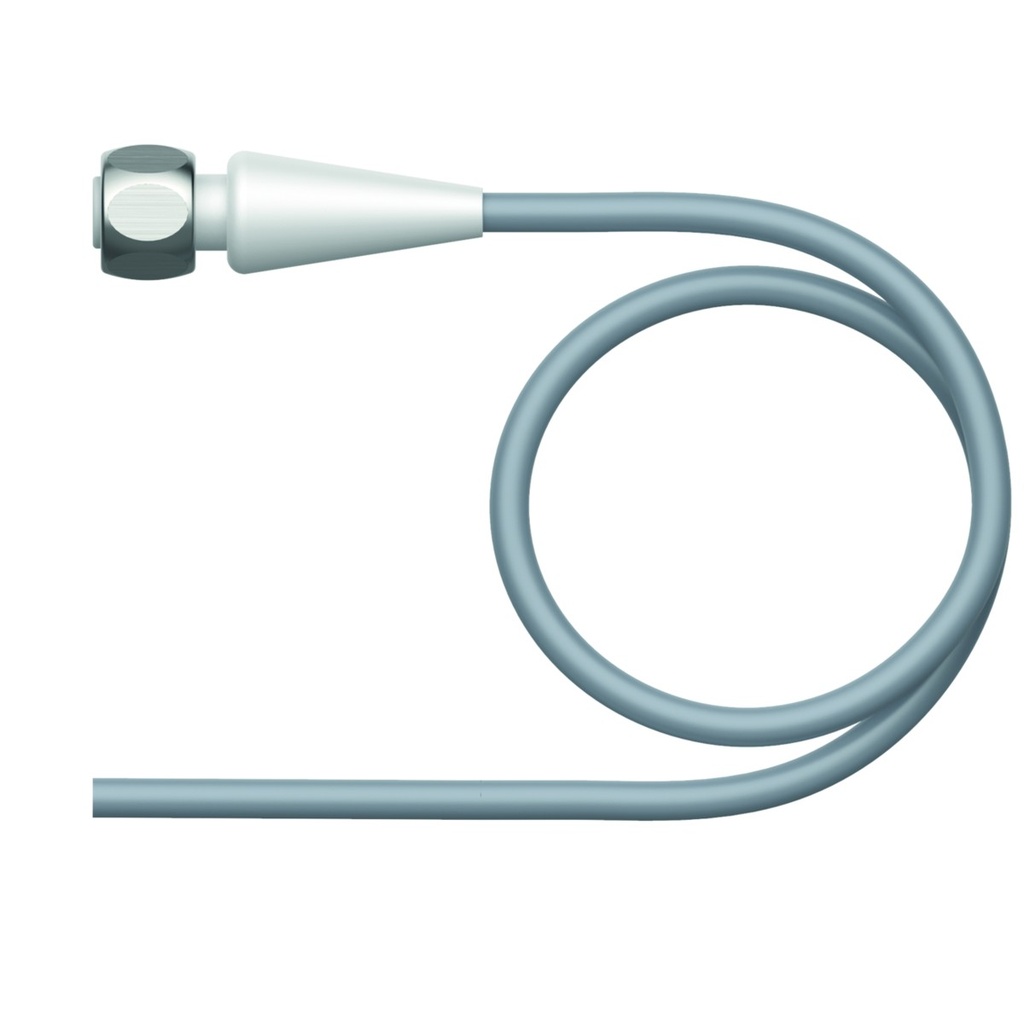

Connection cable RKH4.4-2/TFE, M12, female, straight, 4-pin, 2m PVC

RKH4.4-2/TFE is a TURCK hygienic-design connection cable for food and beverage production, with a straight M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, grey (RAL 7040), Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: grey PP, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP68, IP69 (only when screwed in); -25...+80°C fixed, 0...+80°C mobile

The jacket resists acids, alkalis, oils and chemicals and is flame retardant per DIN EN 60332-1-2 and DIN EN 60332-2-2. RoHS and REACH compliant, approvals: Ecolab, GOST.
