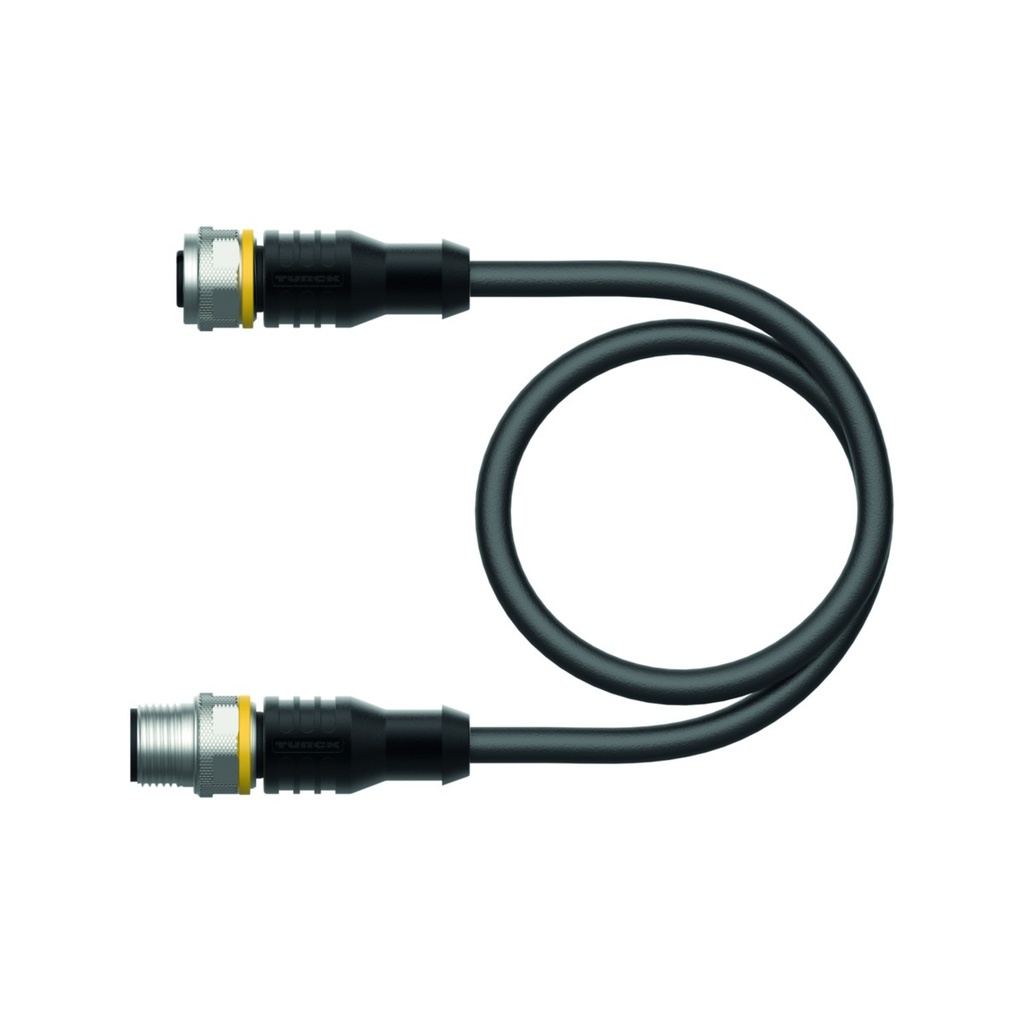

Connection cable RKC8T-2-RSC8T/TXL, M12 female straight / M12 male straight, 8-pin, 2m PUR

RKC8T-2-RSC8T/TXL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (8-pin).

• Connectors: M12 x 1 female, straight, A-coded / M12 x 1 male, straight, A-coded; 8-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, black, Ø 5.8 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.
