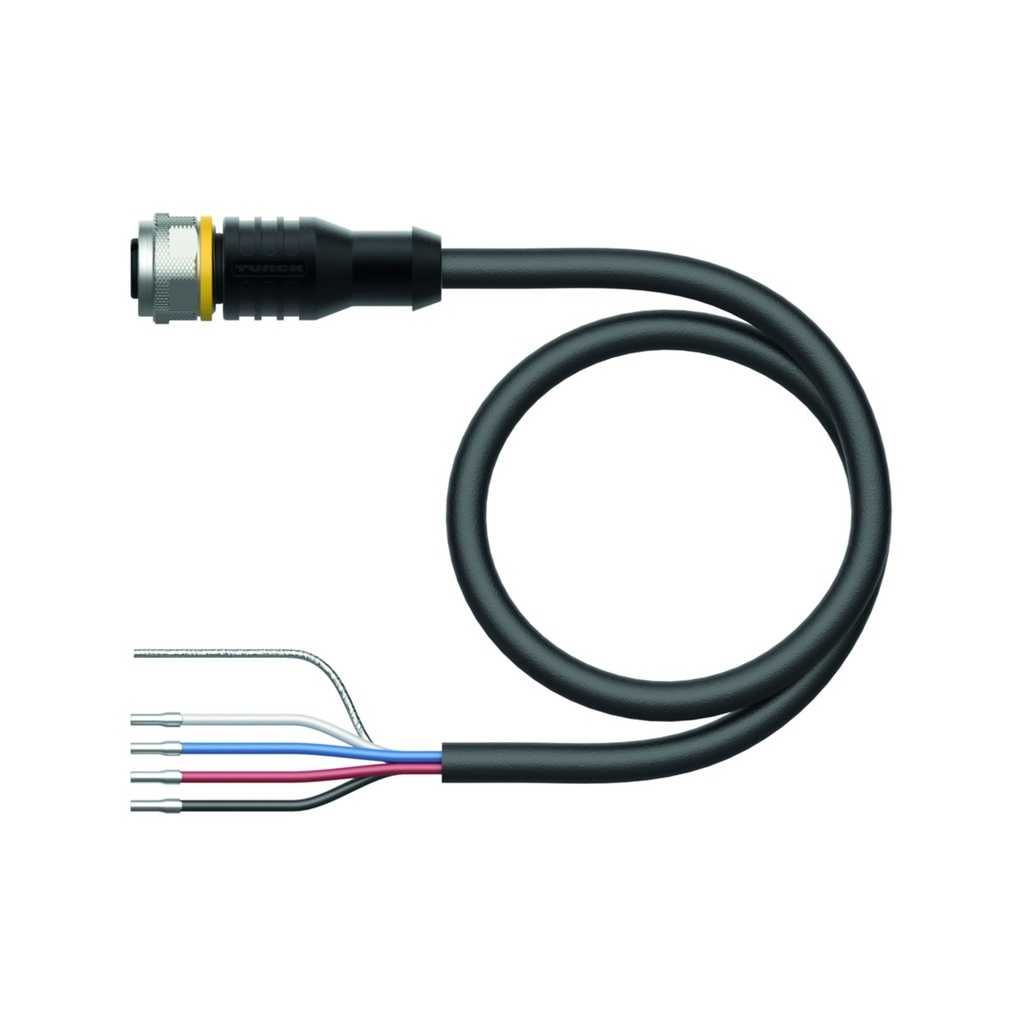

RKC5701-7M is a TURCK shielded CAN bus cable (DeviceNet, CANopen) with a straight M12 female connector (5-pin, A-coded) on one end and open cores on the other. The cable carries a separate power pair and a data pair with 120 Ω impedance.
- Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
- Cable: 7 m, PUR, anthracite, Ø 6.7 mm, shielded; power pair AWG 22 (RD, BK), data pair AWG 24 (WH, BU)
- Electrical: 4 A, 60 V, impedance 120 Ω (1 MHz), capacitance 37 pF/m, loop resistance 82 Ω/km
- Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
- Environment: IP67, IP69K (only when screwed in); -40...+80°C fixed, -25...+60°C mobile
The cable is rated for drag chains (at least 5 million bending cycles, up to 3 m/s, bending radius ≥10 x Ø). It is oil resistant per VDE 0472-803, flame retardant per VDE 0472-804/B, UV resistant and free from halogen and LABS.
Approval: UL.
