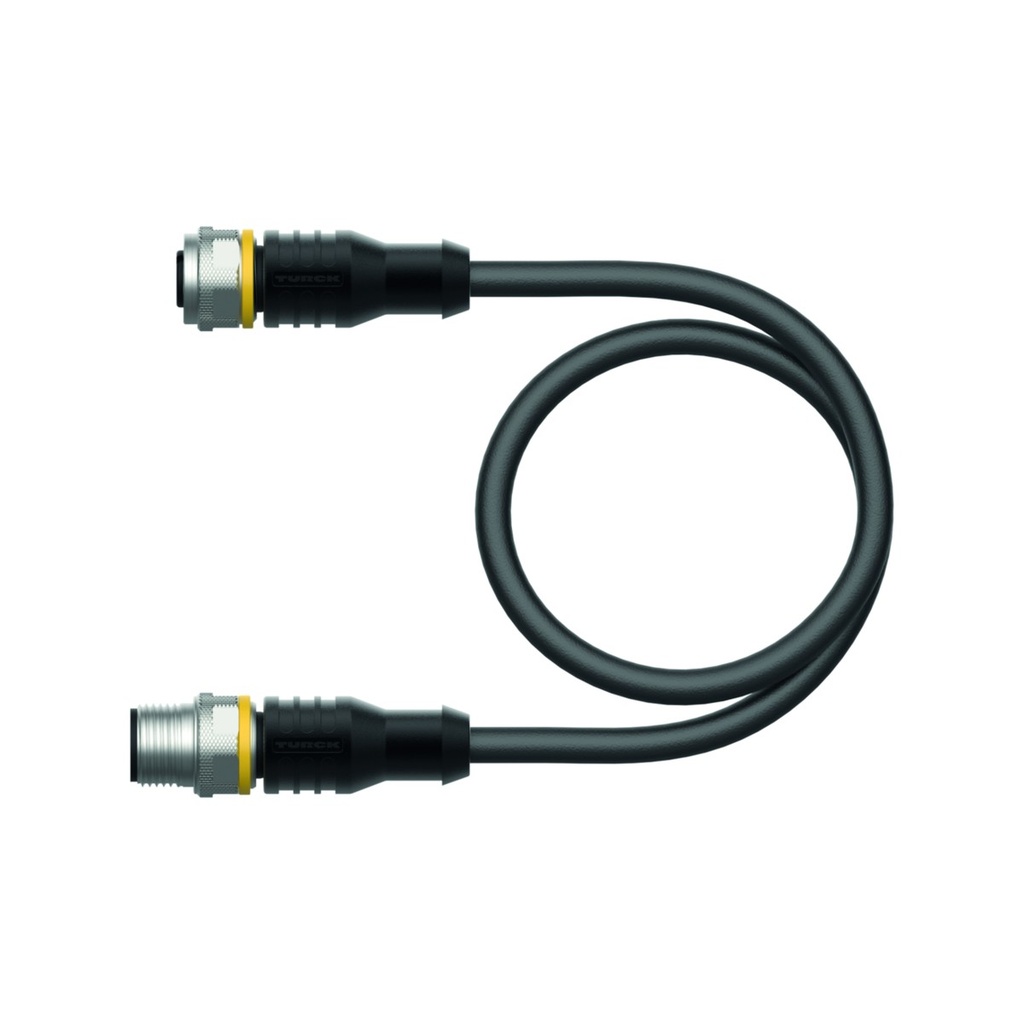

Connection cable RKC4.5T-15-RSC4.5T/TXL, M12, female/male, straight, 5-pin, 15m PUR

RKC4.5T-15-RSC4.5T/TXL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (5-pin). The PUR jacket is rated for moving installation, including drag chains.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PUR, black, Ø 4.8 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.
