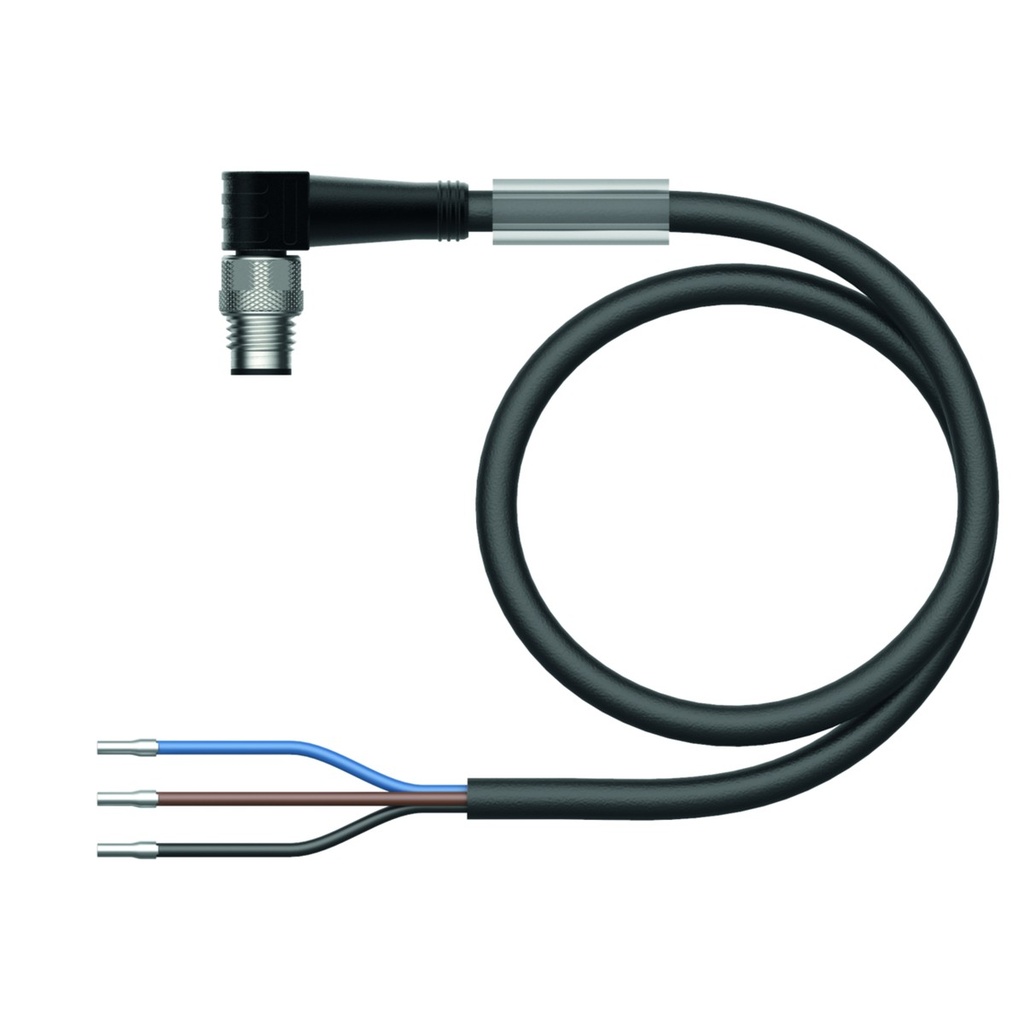

Connection cable PSW3M-5/TXL, M8, male, angled, 3-pin, 5m PUR

PSW3M-5/TXL is a TURCK sensor and actuator cable with a angled M8 male connector (3-pin) on one end and open cores on the other, for connecting sensors and actuators with an M8 female socket to a terminal box or controller.

• Connector: M8 x 1 male, angled, 3-pin, gold-plated brass (CuZn) contacts, black TPU body, nickel-plated brass coupling nut
• Cable: 5 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², PP core insulation, core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, test voltage 2000 V, more than 100 mating cycles
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The black PUR jacket is rated for drag chains: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.
