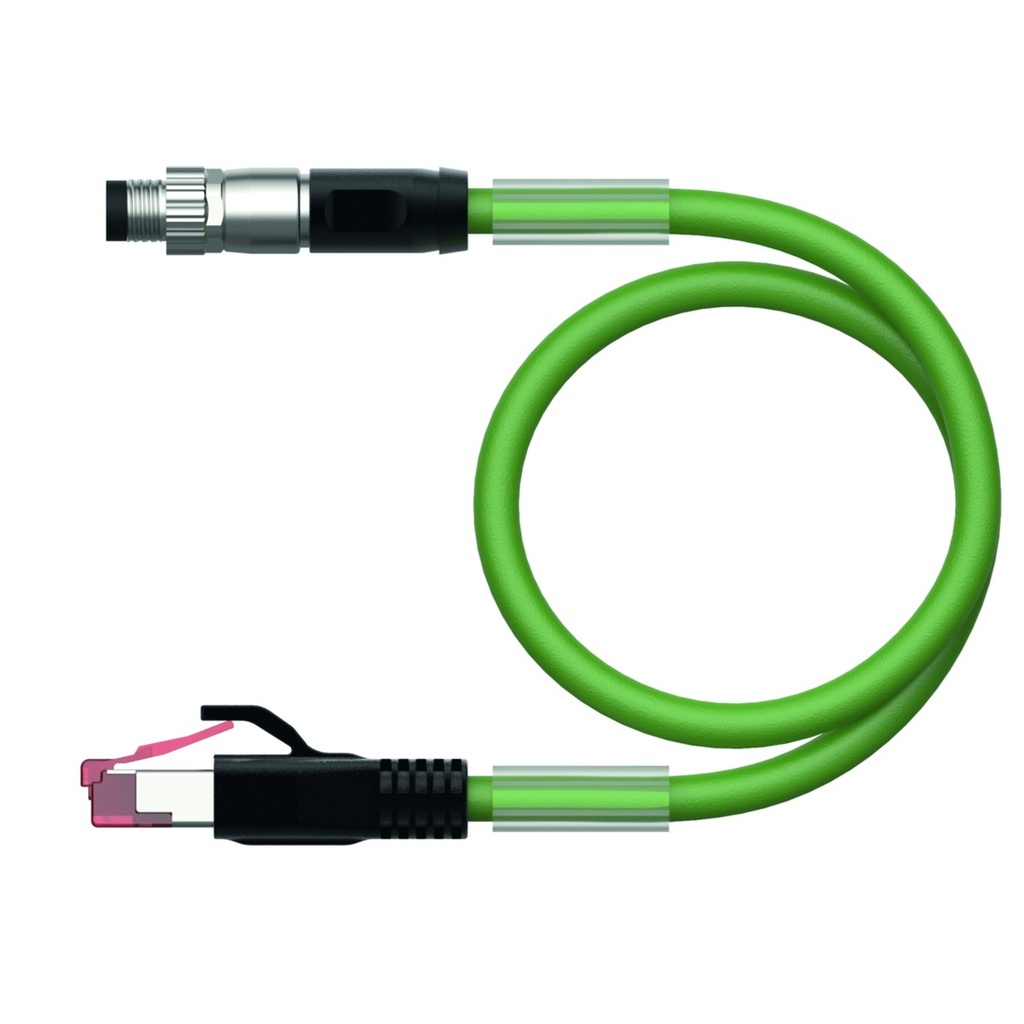

Connection cable PSGS4M-RJ45S-4414-1M, M8 male straight / RJ45 male straight, 4-pin, 1m PUR, shielded

PSGS4M-RJ45S-4414-1M is a TURCK Industrial Ethernet cable with a straight M8 male connector on one end and a straight RJ45 male plug on the other (4-pin). The 4-wire CAT 5e cable is built to ISO/IEC 11801, EN 50173 and EIA/TIA 568-A for 100 Mbit/s Ethernet.

• Connectors: M8 male, straight / RJ45 male, straight; 4-pin, gold-plated brass (CuZn) contacts
• Cable: 1 m, PUR, green, Ø 4.8 mm, 4 x 0.15 mm² (AWG 26), core colours WHOG, WHBU, BU, OG, overall shield of aluminium foil and tinned copper braid
• Ratings: 3 A, 42 V; CAT 5e, impedance 100 Ω, capacitance 51 pF/m
• Housing: black TPU, nickel-plated zinc die-cast (GD-Zn) coupling nut
• Environment: M8 IP67 (only when screwed in), RJ45 IP20; -40...+80°C fixed, -25...+80°C mobile
• Drag chain: at least 5 million bending cycles, bending radius ≥15 x Ø, torsion ±30°/m

The green PUR jacket is UV and oil resistant (IEC 60811-2-1), flame retardant (IEC 60332-1-2), resistant to weld spatter and free from halogen, silicone, PVC and LABS; RoHS compliant. Approval: cULus.
