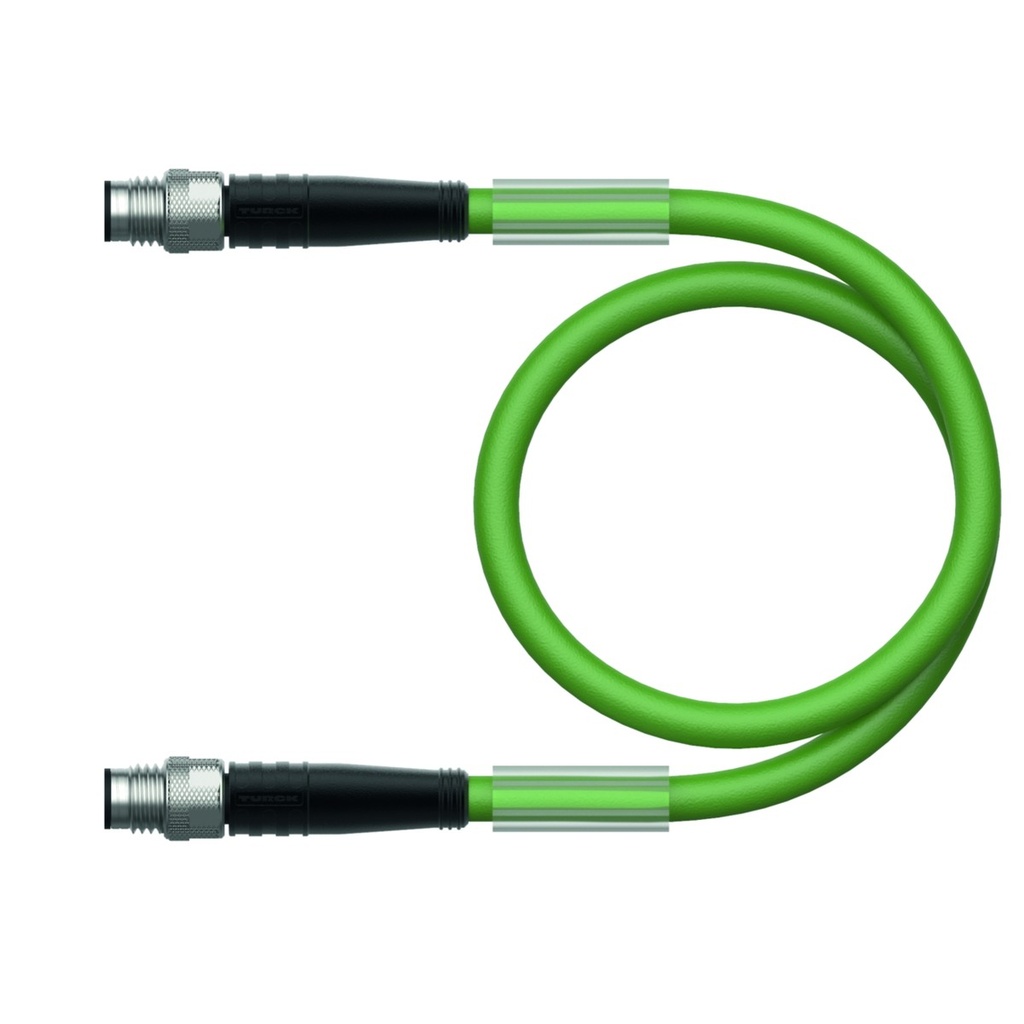

Connection cable PSG4M-0.2-PSG4M/TXN, M8 male straight / M8 male straight, 4-pin, 0.2m PUR

PSG4M-0.2-PSG4M/TXN is a TURCK bridge cable with a straight M8 male connector (4-pin) on each end, used to link TBEN-S modules to each other.

• Connectors: M8 male, straight / M8 male, straight; 4-pin, gold-plated brass (CuZn) contacts
• Cable: 0.2 m, PUR, green, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 30 V, more than 100 mating cycles
• Housing: black TPU, nickel-plated brass coupling nuts; M8 tightening torque 0.5...0.6 Nm
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant and free from halogen, silicone, PVC and LABS. CE, UKCA and RoHS compliant.
