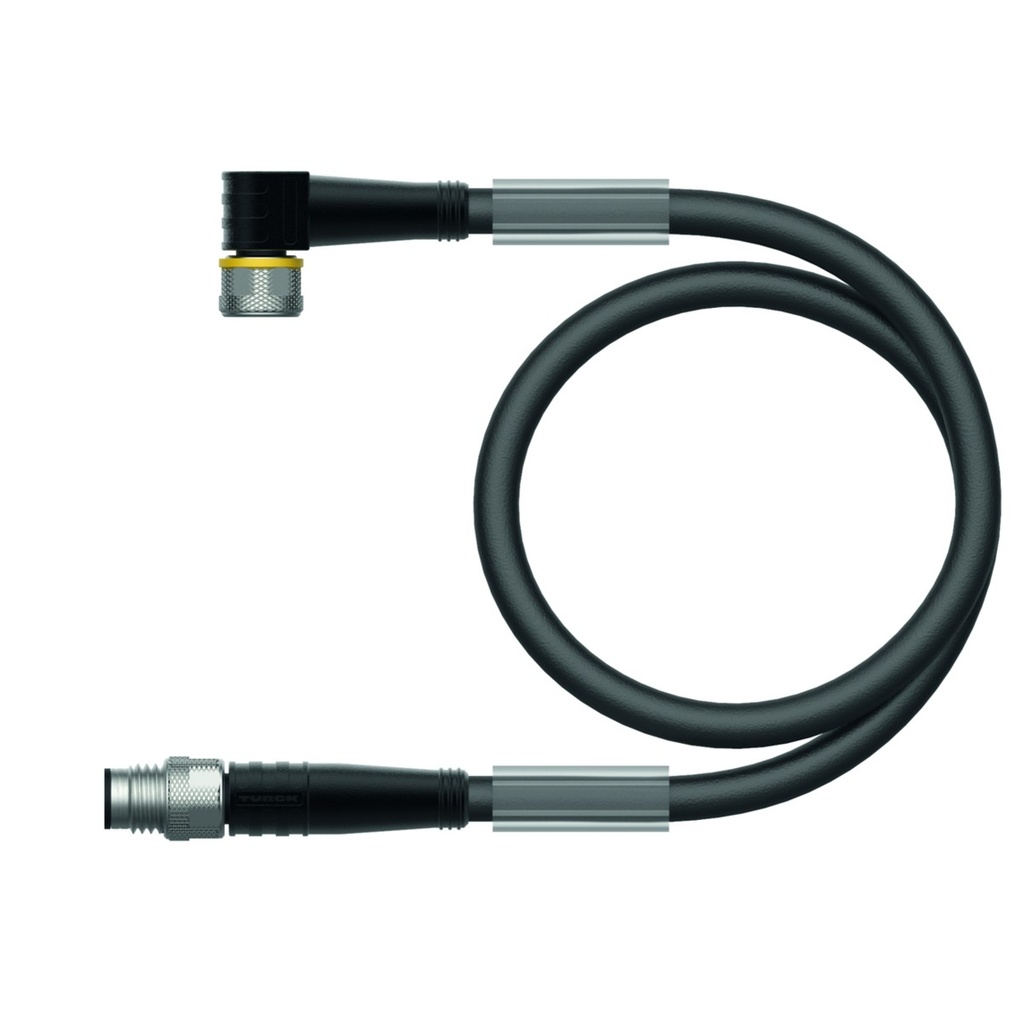

Connection cable PKW4M-2-PSG4M/TXL, M8, female angled/male straight, 4-pin, 2m PUR

PKW4M-2-PSG4M/TXL is a TURCK M8 connection cable with a black PUR jacket rated for drag chains. The female end is angled and the male end is straight, which saves space where the cable leaves the device at a right angle.

• Connectors: M8 x 1 female, angled, and M8 x 1 male, straight, 4-pin each, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 2 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², PP core insulation, core colours BN, WH, BU, BK
• Ratings: 4 A, 50 V AC/60 V DC
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.
