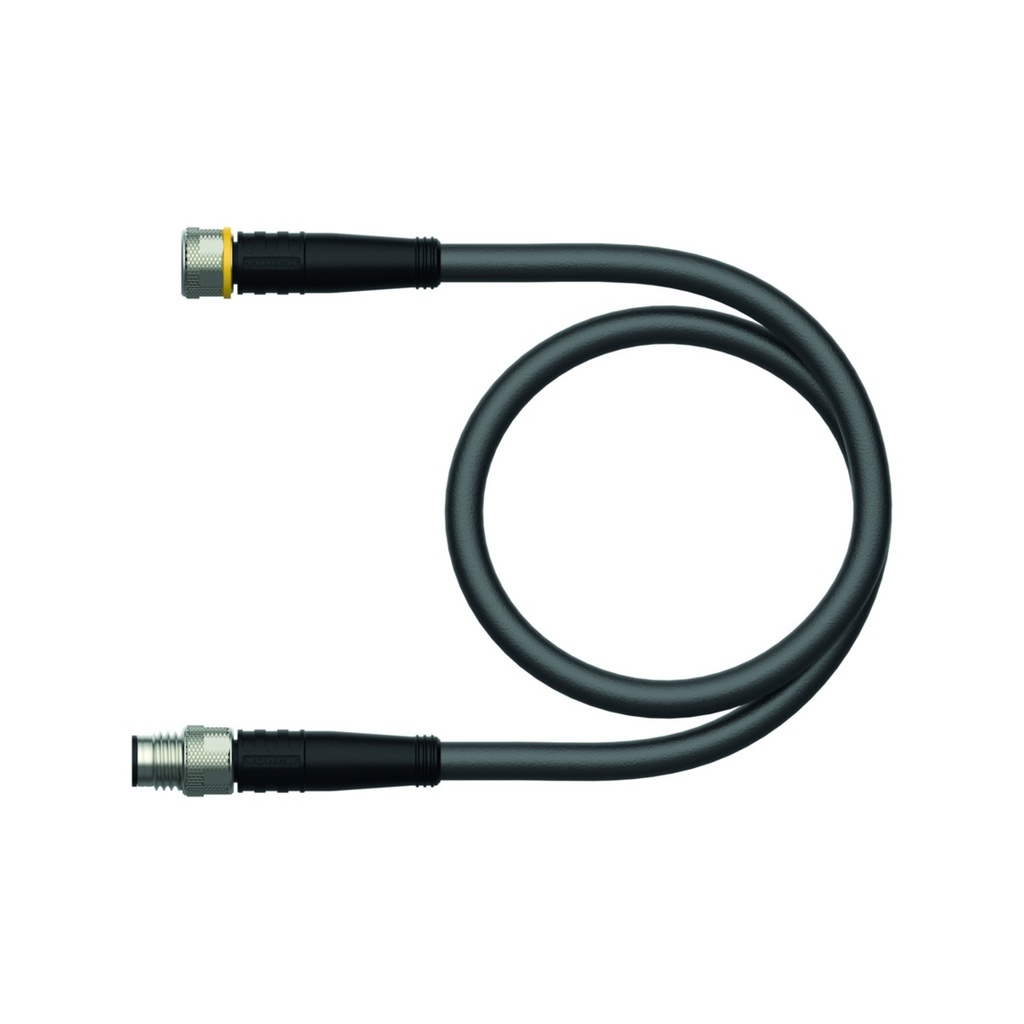

Connection cable PKG4M-0.3-PSG4M/TEL, M8, female/male, straight, 4-pin, 0.3m PVC

PKG4M-0.3-PSG4M/TEL is a TURCK M8 connection cable with straight female and male connectors, 4-pin, and a black PVC jacket.

• Connectors: M8 x 1 female and M8 x 1 male, both straight, 4-pin each, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 0.3 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², PVC core insulation, core colours BN, WH, BU, BK
• Ratings: 4 A, 50 V AC/60 V DC
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.
