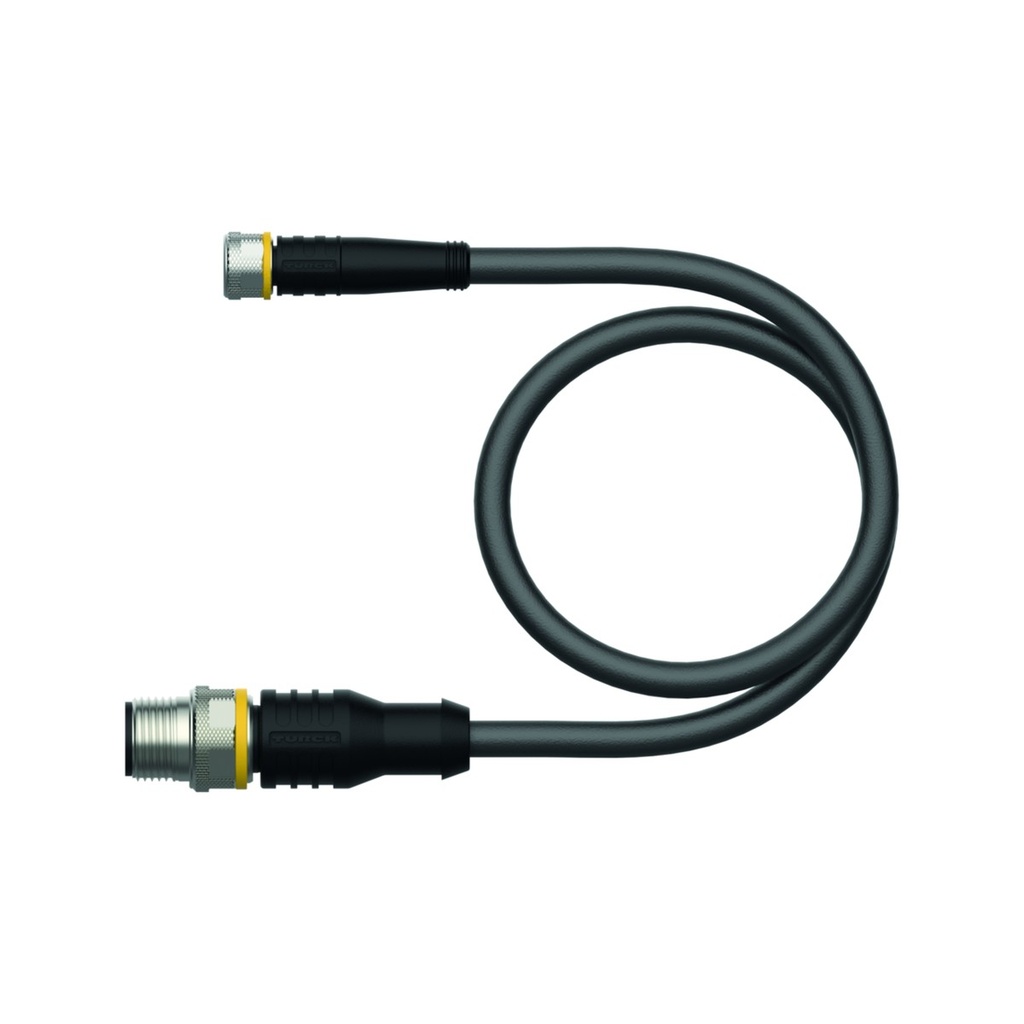

Connection cable PKG3M-5-RSC4T/TEL, M8 female/M12 male, straight, 3-pin, 5m PVC

PKG3M-5-RSC4T/TEL is a TURCK adapter cable from a straight M8 female connector to a straight M12 male connector (A-coded), 3-pin, with a black PVC jacket. It connects an M8 sensor to an M12 port.

• Connectors: M8 x 1 female, straight, and M12 x 1 male, straight, A-coded, 3-pin each, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 5 m, PVC, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 50 V AC/60 V DC
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.
