Connection cable HT-WWAK4.5-25/S2430, M12, female, angled, 5-pin, 25m PTFE, high-temperature

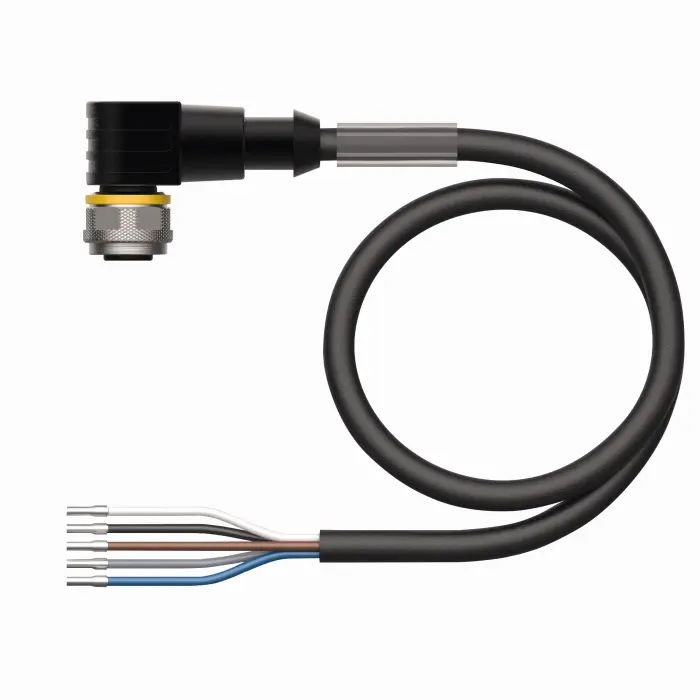

HT-WWAK4.5-25/S2430 is a TURCK high-temperature connection cable with an angled M12 female connector (5-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, 5-pin, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 25 m, PTFE, white, Ø 3.8 mm, 5 x 0.34 mm², PTFE core insulation, core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V
• Housing: black glass-fibre reinforced PBT, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP65 (only when screwed in); -20...+150°C fixed

The PTFE cable itself is rated for -190...+260°C. The jacket stays flexible in cold and heat, resists welding sparks, chemicals, UV radiation, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and LABS free. RoHS compliant.
