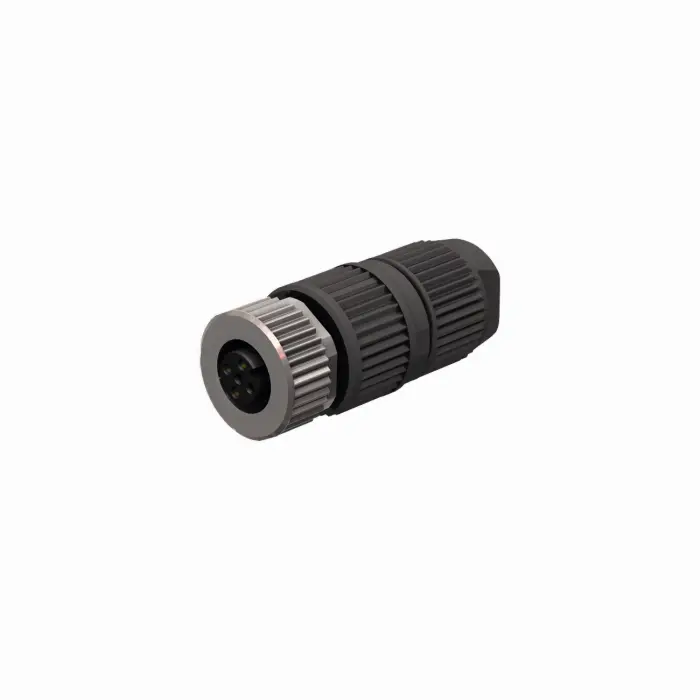

Connector HA8141-16, M12 female straight, 4-pin A-coded, IDC, 6...8mm cable, IP67

HA8141-16 is a TURCK field-wireable M12 female connector, straight, 4-pin, A-coded, for 6...8 mm cable with IDC terminals.

• Connector: M12, female, straight, A-coded, 4-pin, gold-plated CuZn contacts
• Ratings: 6 A, 50 V
• Connection: IDC terminals, conductors up to 0.75 mm², cable diameter 6...8 mm, M12 x 1 screw-in thread
• Housing: black PA body and contact carrier, nickel-plated brass (CuZn) coupling nut, FPM/FKM seal
• Environment: IP67 (screwed together); -5...+50°C fixed
