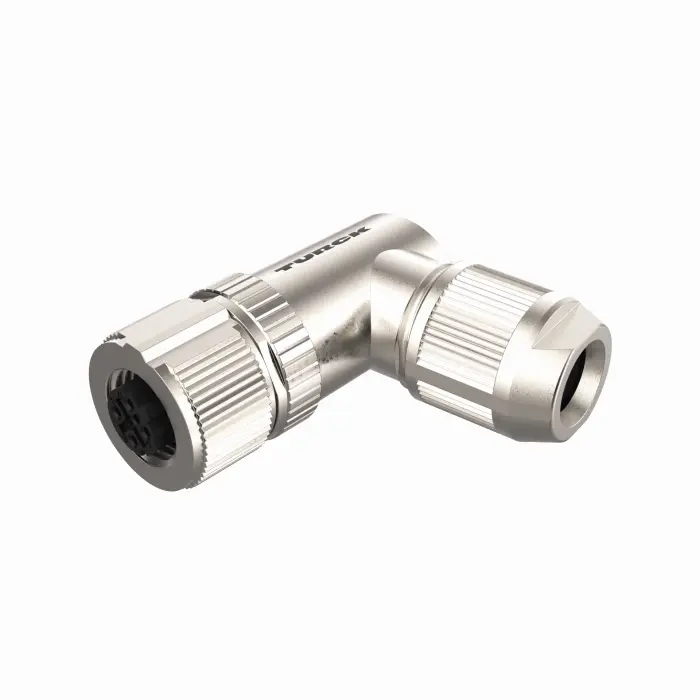

Connector FW-EWKSM0426-FD-P-0408, M12 female angled, 4-pin D-coded, Ethernet, push-in, shielded, 4...8mm cable, IP67

FW-EWKSM0426-FD-P-0408 is a TURCK field-wireable M12 female connector, angled, with D-coding (4-pin) for Industrial Ethernet. The cores are connected in push-in terminals and the cable shield is picked up by an iris spring onto the metal housing.

• Connector: M12 x 1 female, angled, D-coded, 4-pin, gold-coated bronze (CuSn) contacts with nickel sublayer, more than 100 mating cycles
• Ratings: 48 VAC / 60 VDC, insulation resistance ≥10⁸ Ω
• Connection: push-in terminals for 0.14...0.75 mm² cores (0.08...0.5 mm² with ferrules), cable outer diameter 4...8 mm
• Housing: nickel-plated GD-Zn die-cast zinc body and coupling nut, NBR seal, black PA 6.6 contact carrier
• Environment: IP65, IP67 (assembled and screwed in); -40...+85°C

Approval: cULus. Flammability class UL 94 V0, RoHS compliant.
