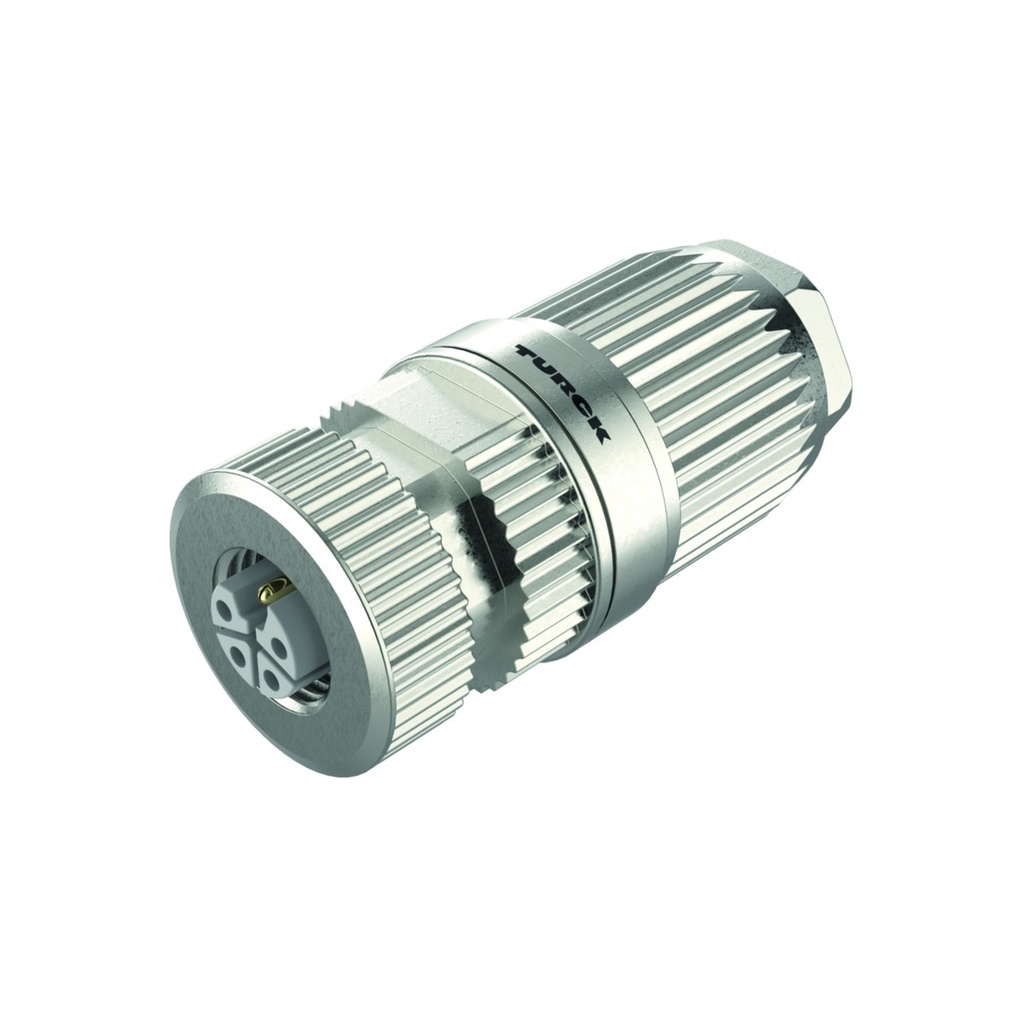

Connector FW-ERKSM0516-PL-I-0613, M12 female straight, L-coded 4+FE, 12A 63VDC, IDC, 6...13mm cable, IP67

FW-ERKSM0516-PL-I-0613 is a TURCK field-wireable M12 Power female connector with L-coding (4+FE) for power connections up to 12 A and 63 VDC. The cores are terminated in IDC quick-connect terminals without stripping.

• Connector: M12 x 1 female, straight, L-coded, 4+FE, gold-plated brass (CuZn) contacts, more than 500 mating cycles
• Ratings: 12 A, 63 VDC
• Connection: IDC terminals for 0.75...1.5 mm² cores, cable outer diameter 6...13 mm
• Housing: black GD-Zn die-cast zinc, nickel-plated GD-Zn coupling nut, FPM/FKM seal; shieldable
• Environment: IP65, IP67 (assembled and screwed in); -40...+85°C

Approval: cULus.
