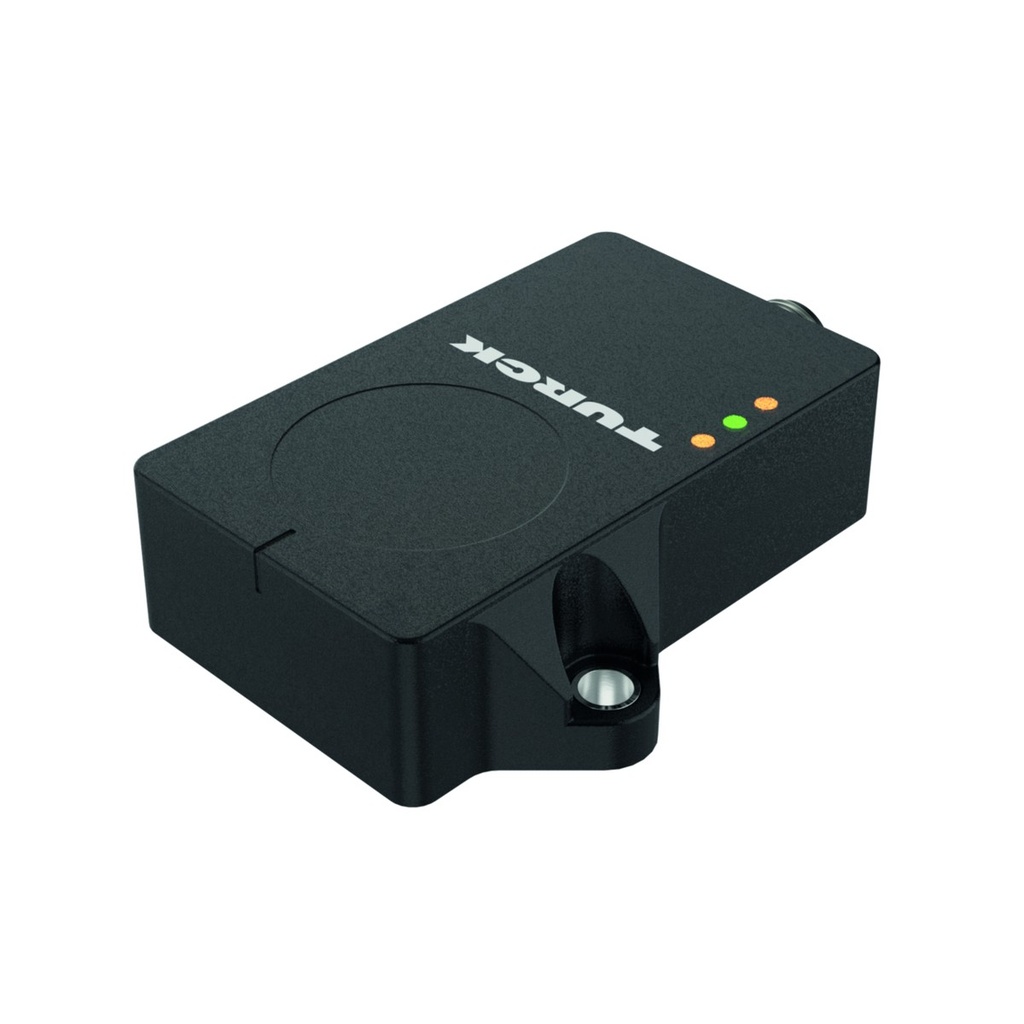

Vibration sensor CMVT-QR20-IOLX3-H1141/3GD, ATEX 3G/3D, 16 g, 0...320 mm/s, 3-axis, IO-Link, M12, IP69K

CMVT-QR20-IOLX3-H1141/3GD is a condition monitoring vibration and temperature sensor measuring acceleration and velocity over three axes plus the housing temperature. It is the ATEX version of the CMVT-QR20 for zones 2 and 22 - the measuring side is unchanged, but the device carries an Ex marking and a narrower permitted ambient range.

• Measuring range: acceleration 16 g RMS (6.6 kHz sampling), velocity 0...320 mm/s RMS @ 78 Hz, temperature -40...+85°C; resolution 0.01 g and 0.01 mm/s
• Accuracy: velocity linearity deviation ≤ ±1 % @ 78 Hz, acceleration ≤ ±3 % @ 78 Hz; repeatability ≤ ±5 % @ 78 Hz
• Outputs: pin 4 - IO-Link or SIO, pin 2 - SIO; two PNP/NPN switching outputs in SIO mode; IO-Link COM 3 (230.4 kBaud)
• Supply: 18...30 VDC (IO-Link), 10...30 VDC (SIO), consumption < 50 mA
• Protection: against wire break and reverse polarity
• Housing: rectangular QR20, Ultem plastic, 71.6 x 62.6 x 20 mm
• Environment: IP68/IP69K, pollution degree 3, shock 200 g (4 ms), vibration 20 g; permitted ambient in the ATEX zone -30...+70°C
• Connection: M12 x 1 male connector, 4-pin

Device marking: Ex II 3 G Ex ec IIC T4 Gc / II 3 D Ex tc. The plug connection must not be disconnected under voltage, and the sensor must be protected against mechanical damage.

Over IO-Link the output quantity is selectable - acceleration or velocity, RMS or peak-to-peak - and the switching thresholds are set there. Thresholds can be parameterised to the ISO 10816-3 machine classes or defined freely. A green LED shows the supply and, when flashing, active IO-Link communication; two yellow LEDs show an exceeded threshold.

UL registration number E351232. MTTF 548 years to SN 29500 (Ed. 99) at 40°C. Shock tested to EN 60068-2-27, vibration to EN 60068-2-6, temperature cycling to EN 60068-2-14 (20 cycles).
