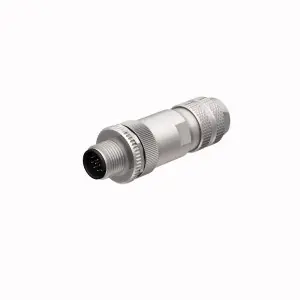

Connector CMBS8181-0, M12 male straight, 8-pin A-coded, Ethernet, shieldable, screw terminal, 6...8mm cable, IP67

CMBS8181-0 is a TURCK field-wireable M12 male connector, straight, 8-pin, A-coded, for 6...8 mm cable with screw-clamp terminals. The metal housing has a shield ring for connecting the cable shield; Turck lists it for Ethernet.

• Connector: M12, male, straight, A-coded, 8-pin, gold-plated CuZn contacts, more than 100 mating cycles
• Ratings: 2 A, 60 V, contact resistance ≤3 mΩ
• Connection: screw-clamp terminals, conductors 0.14...0.5 mm², cable diameter 6...8 mm
• Housing: nickel-plated die-cast zinc (GD-Zn) body and coupling nut, black PA contact carrier
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.
