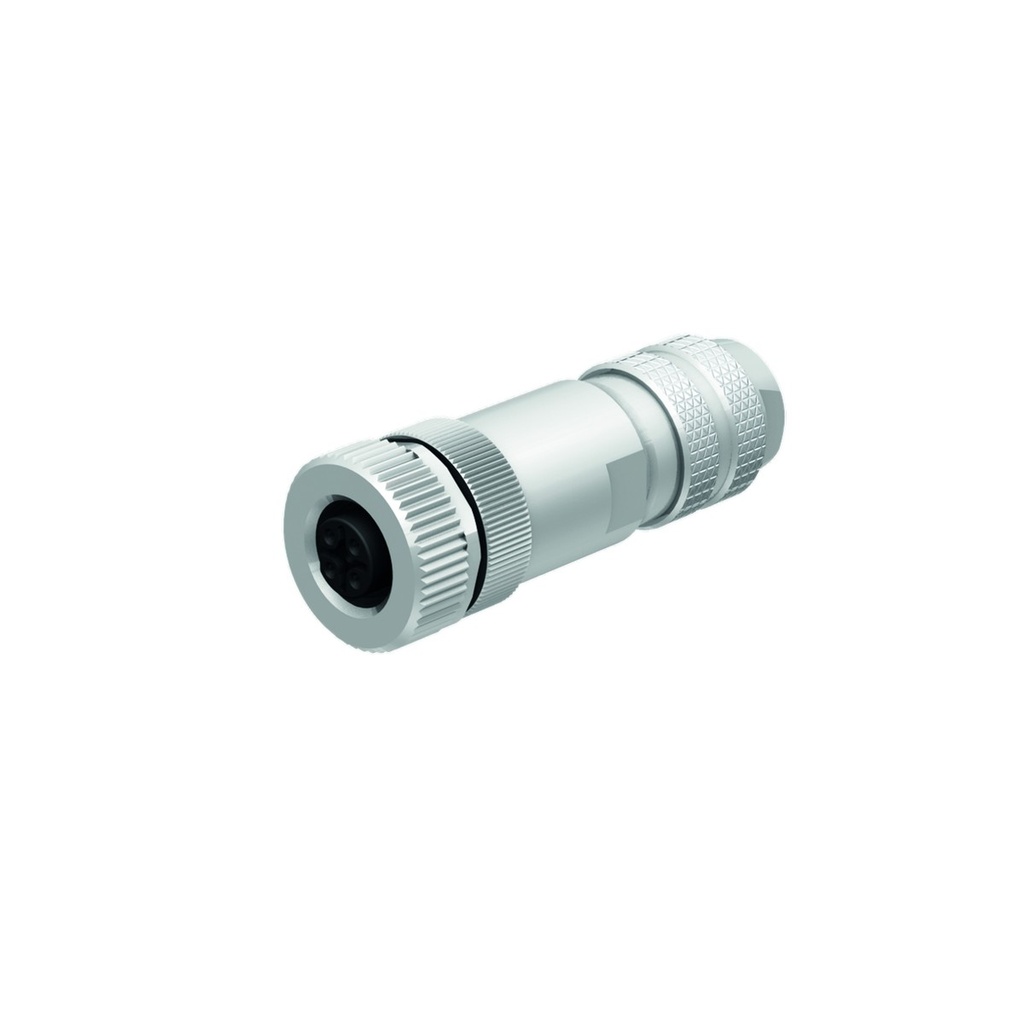

Connector BMWS8151-8.5, M12 female straight, 5-pin B-coded, PROFIBUS-DP, shielded, screw terminal, 6...8.5mm cable, IP67

BMWS8151-8.5 is a TURCK field-wireable M12 female connector, straight, 5-pin, B-coded, for 6...8.5 mm cable with screw-clamp terminals. It is made for PROFIBUS-DP at up to 12 Mbit/s; the cable shield is contacted to the metal housing by an iris spring.

• Connector: M12, female, straight, B-coded, 5-pin, gold-plated CuZn contacts, more than 100 mating cycles
• Ratings: 4 A, 125 V
• Connection: screw-clamp terminals, conductors up to 0.75 mm², cable diameter 6...8.5 mm, M18 x 1 screw-in thread
• Housing: nickel-plated die-cast zinc (GD-Zn) body and coupling nut, FPM/FKM seal
• Environment: IP67 (screwed together); -25...+85°C fixed
