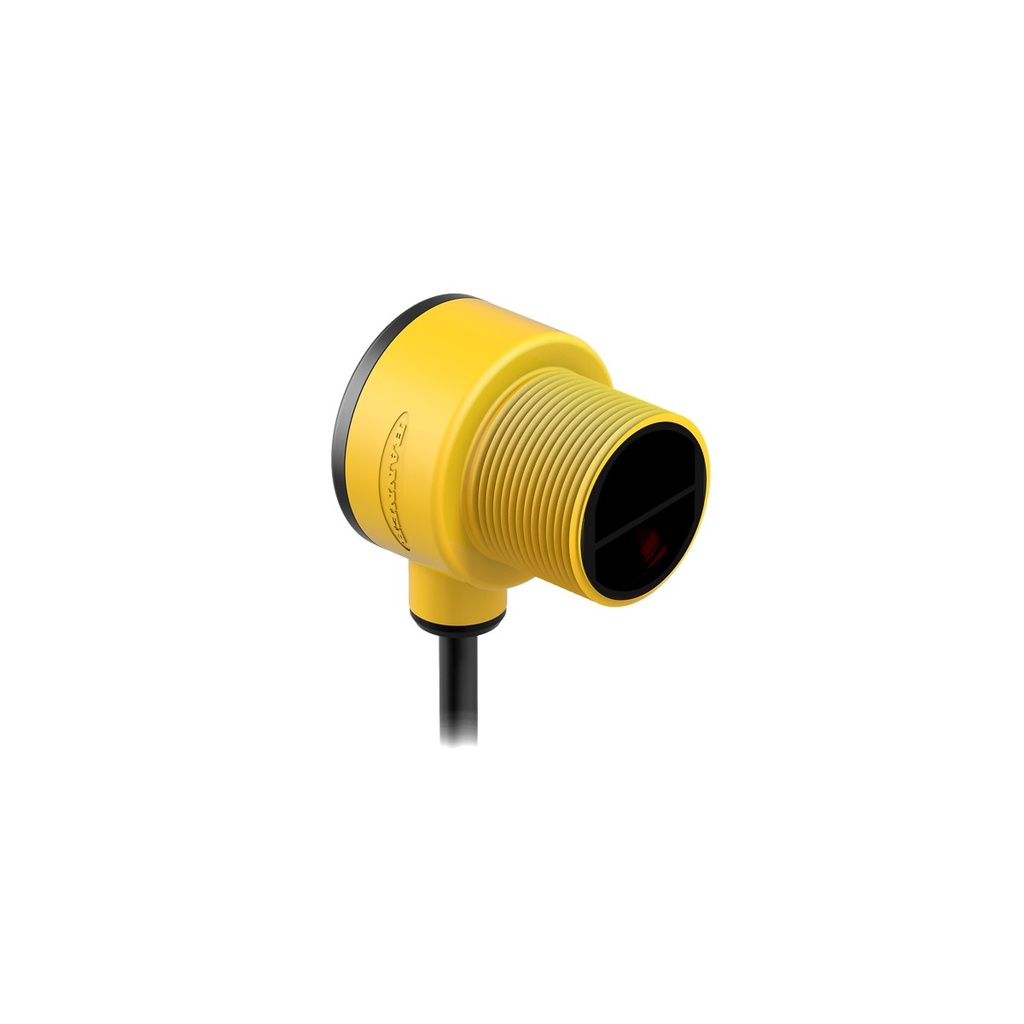

Photo sensor T30SN6FF200, fixed field 200 mm, NPN NO/NC, 10-30VDC, 2 m cable, IP69K

T30SN6FF200 is a Banner T30 series fixed-field photo sensor with a 200 mm cutoff and an infrared beam, in a right-angle housing with a 30 mm threaded lens. Two detectors compare the light returned from near and far, so the sensor detects objects up to 200 mm and ignores backgrounds beyond.

• Sensing range: 200 mm cutoff, fixed
• Output: complementary NPN, Light Operate (black) and Dark Operate (white), 150 mA each
• Response: 3 ms; repeatability 750 µs
• Supply: 10-30 V DC, 35 mA
• Housing: right-angle, M30x1.5 thread, PBT polyester, epoxy-encapsulated, jam nut included
• Environment: IP69K, NEMA 4X, -40...+70 °C
• Connection: 2 m PVC cable, 4 wires

Backgrounds must sit beyond the cutoff; a mirror-like background can still switch the sensor, which is avoided by angling it or using a matte surface. Rotating the sensor 90° stops an object moving across the face beyond the cutoff from triggering it. The white-wire output can be wired as a normally open marginal-signal alarm instead of Dark Operate. There is no sensitivity adjustment.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating). UL, CE and UKCA approved.
