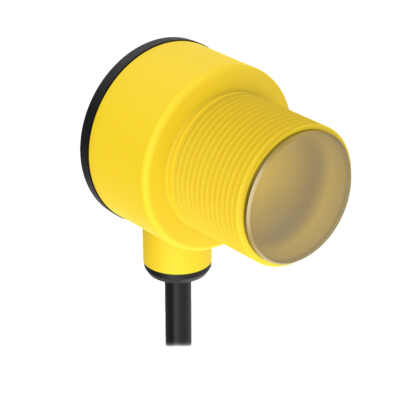

Radar sensor T30R-4545-KIQ, 0.3...10 m, 4-20mA, PNP/NPN, IO-Link, 45°, M30, M12 5-pin

T30R-4545-KIQ is a Banner T30R series 122 GHz FMCW radar sensor in an M30 housing with a 45 x 45° beam. It outputs the measured distance as 4-20 mA and has one configurable PNP/NPN discrete output that also carries IO-Link.

• Accuracy: linearity < ±20 mm below 500 mm, < ±4 mm above 500 mm (RCS 1 m² reference target); repeatability < 1 mm; temperature effect < ±10 mm
• Range: detection 0.3...10 m
• Outputs: analog 4-20 mA (white wire); discrete PNP/NPN or IO-Link push/pull (black wire), 50 mA; analog update 2 ms, discrete response 6 ms
• Supply: 10...30 V DC, < 100 mA at 24 V
• Housing: PBT, M30 x 1.5 thread, COP window
• Environment: IP67, -40...+65 °C
• Connection: integral M12 5-pin male

The flat lens gives a much wider 45 x 45° beam than the T30R-1515. Detection is unaffected by wind, fog, steam and temperature changes and resists rain and snow. Settings are made over IO-Link, with Banner Measurement Sensor Configuration Software or with the remote input wire.

Radio approval: US, Canada, Europe, UK, Australia, New Zealand, India, Singapore, Malaysia, Korea; ETSI EN 305 550-1 and -2. Vibration per MIL-STD-202F method 201A, shock per method 213B (75 g operating).
