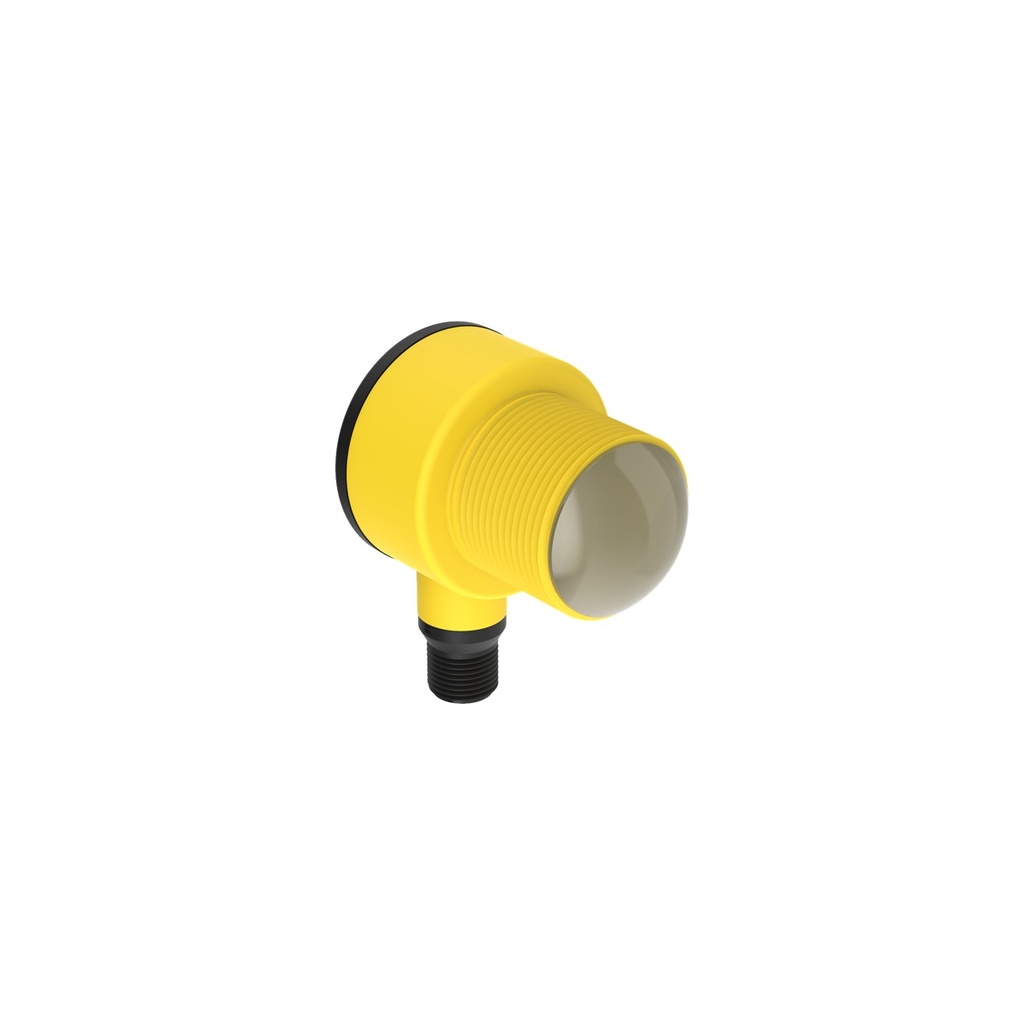

Radar sensor T30R-1515-KUQ, 0.15-15 m, 0-10V + PNP/NPN, IO-Link, 12-30VDC, M30, M12 5-pin, IP67

T30R-1515-KUQ is a Banner T30R series 122 GHz FMCW radar sensor with a 15 x 15° beam, measuring distance from 0.2 to 15 m. Radar is unaffected by dust, rain, fog or wind and detects targets regardless of colour.

• Accuracy: linearity < ±20 mm below 500 mm, < ±4 mm above 500 mm (1 m² RCS target); repeatability < 1 mm
• Measuring range: 0.2-15 m; detection from 0.15 m
• Outputs: white wire analog 0-10 V or 0.5-4.5 V; black wire IO-Link or push/pull, PNP or NPN, 50 mA; response 2 ms analog, 6 ms discrete
• Supply: 12-30 V DC, < 100 mA at 24 V
• Protection: reverse polarity, transient overvoltage, output short circuit
• Housing: M30 threaded barrel, PBT, COP window, max. torque 2.3 Nm
• Environment: IP67, -40...+65 °C
• Connection: integral M12 male connector, 5-pin

The analog window and switch points are taught with the push buttons or remote teach, or set over IO-Link or with Banner Measurement Sensor Software via a USB adapter.

Radio approvals ETSI EN 305 550 and FCC Part 15. Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g). UL, CE and UKCA approved.
