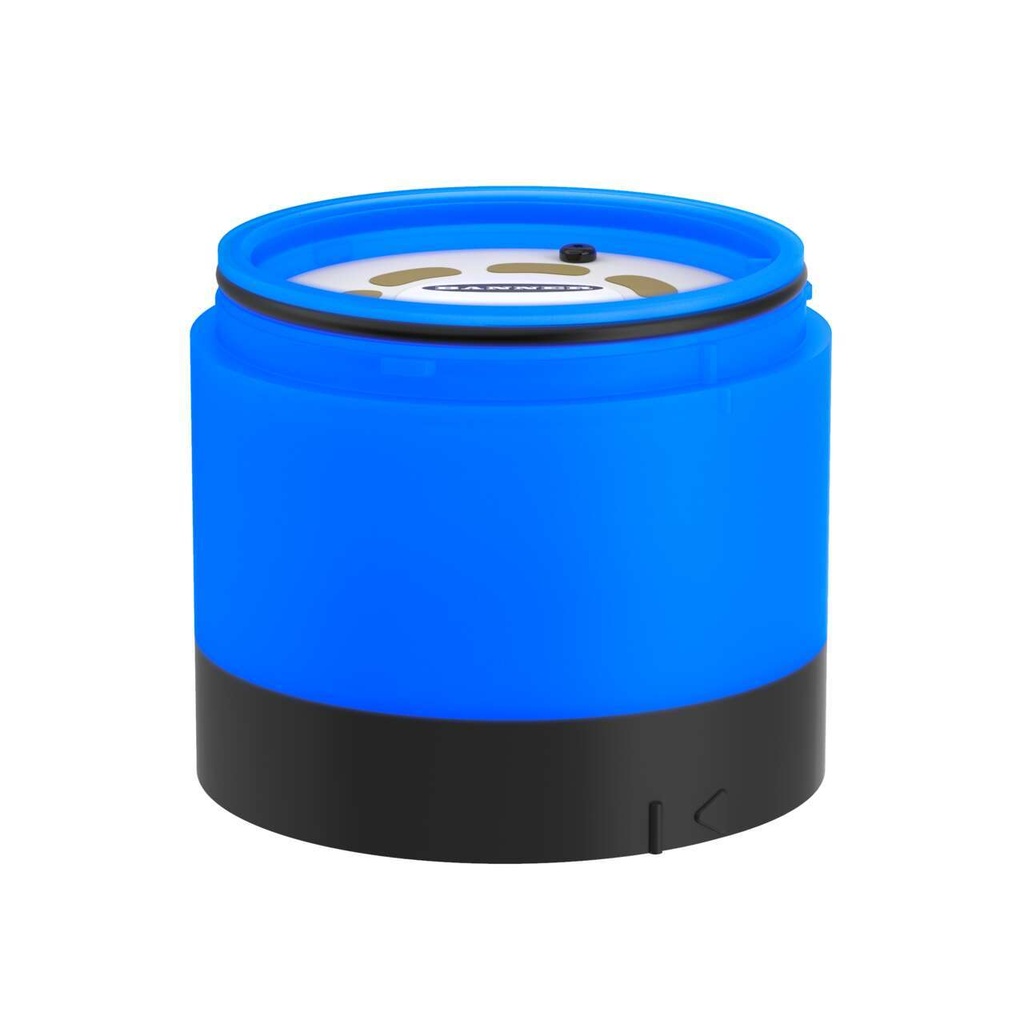

LED indication tower module SG-TL70B-B, blue, 12-30VDC, IP65/IP66

SG-TL70B-B is a Banner TL70B series blue 70 mm light module for a modular tower light. When off the segment looks gray, so ambient light does not make it appear lit.

• Color: blue, 475 nm, 25 lm
• Mode: steady or flashing 1.5 Hz / 3 Hz
• Supply: 12...30 V DC, 204 mA at 12 V, 102 mA at 24 V
• Housing: polycarbonate, Ø70 x 50 mm
• Environment: IP65, IP66, -40...+50 °C

The module twist-locks onto a TL70B series base. Unlike the TL70 series, the module has no settings of its own: it is driven by the base input that matches its position in the tower, and flashing is switched on with DIP switches in the base.

CE, UKCA and UL compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
