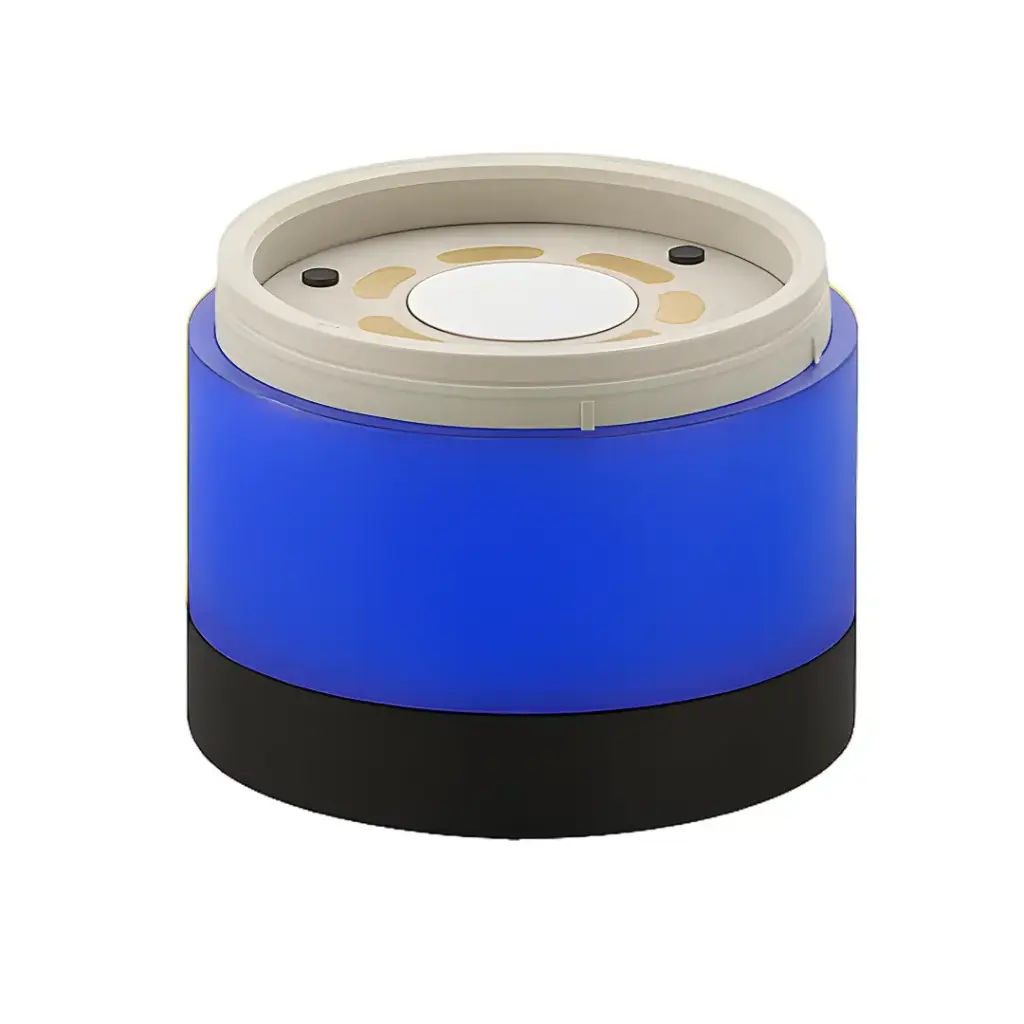

LED indication tower module SG-TL70-B, blue, 12-30VDC, IP65

SG-TL70-B is a Banner TL70 series blue 70 mm light module for a modular tower light. When off the segment looks gray, so ambient light does not make it appear lit.

• Color: blue, 470 nm, 32 lm
• Mode: steady or flashing 1.5 Hz / 3 Hz, selected with DIP switches
• Supply: 12...30 V DC, 420 mA at 12 V, 200 mA at 24 V
• Housing: black polycarbonate, Ø70 x 50 mm
• Environment: IP65, -40...+50 °C

The module twist-locks onto a B-TL70 series base, which carries the electrical connection. The DIP switches set the module's position in the tower (1...6), so it can be moved to another position without rewiring.

CE and UKCA compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
