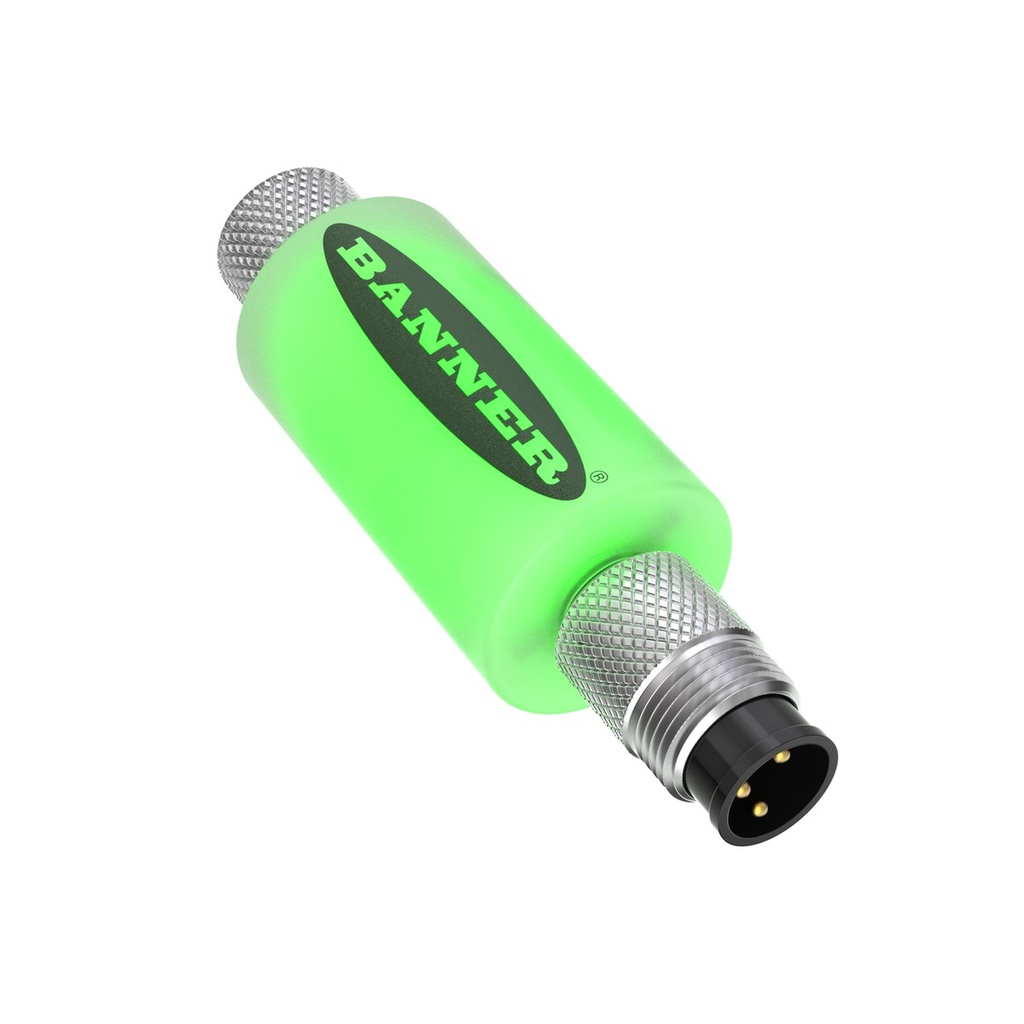

LED indicator S15LGYPM8Q4, PNP, green/yellow, M8 4-pin

S15LGYPM8Q4 is a Banner S15L series two-color status indicator that screws in between a sensor with an M8 connector and its cordset. Green is on while the sensor has power, and yellow replaces it when the sensor's PNP output is active.

• Colors: green - power, yellow - sensor output active
• Input: PNP
• Supply: 10...30 V DC, up to 15 mA
• Housing: Ø15 × 58 mm
• Environment: IP66, IP67, -40...+70 °C
• Connection: integral 4-pin M8 male and female

The indicator is fitted where the sensor's own LEDs cannot be seen, for example inside a machine or behind a guard. The input responds to PNP signals only.
