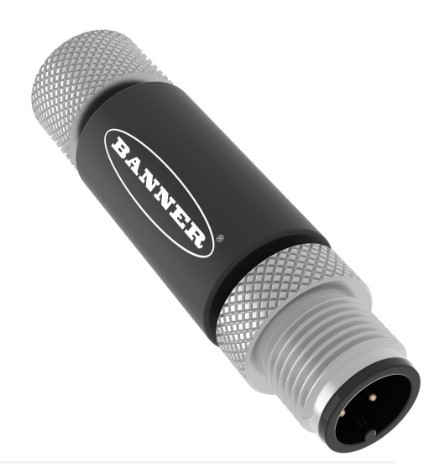

Signal converter S15C-U-MQ, 0-10V to Modbus, 10-30VDC, M12 4-pin

S15C-U-MQ is a Banner S15C series in-line converter that reads an analog voltage signal (0...10 V) and writes the value to a Modbus register over RS-485. It screws directly onto the sensor connector or into the cable run.

• Precision: accuracy 1.5 % of full scale, resolution 12 bit
• Input: analog voltage 0...10 V
• Communication: Modbus server, RS-485; Voltage = register value / 1000, min/max alarm register
• Supply: 10...30 VDC, max. 50 mA; pass-through current max. 4 A
• Housing: over-moulded PVC body, nickel-plated brass coupling nuts, 15x58 mm
• Environment: IP65, IP67, IP68, -40...+70 °C
• Connection: integral 4-pin M12 male and female

Turns a single analog transmitter into a Modbus device for a DXM controller or a PLC with RS-485. Modbus settings are made with Banner Sensor Configuration Software and the BWA-UCT-900 adapter cable, ordered separately.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
