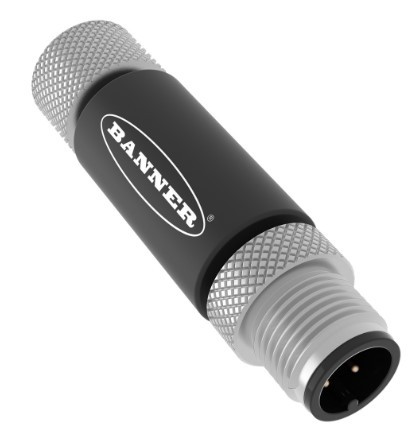

Signal converter S15C-I-KQ, 4-20mA to IO-Link, 18-30VDC, M12 4-pin

S15C-I-KQ is a Banner S15C series in-line converter that reads a 4-20 mA current signal and passes the value to an IO-Link master as process data in µA. It screws directly onto the sensor connector or into the cable run.

• Precision: accuracy 0.5 %, resolution 14 bit
• Input: analog current 4...20 mA, input impedance approx. 450 Ω
• Communication: IO-Link device, switch points SP1 and SP2 set over IO-Link
• Supply: 18...30 VDC, max. 50 mA; pass-through current max. 1 A
• Housing: over-moulded PVC body, nickel-plated brass coupling nuts, 15x58 mm
• Environment: IP65, IP67, IP68, -40...+70 °C
• Connection: integral 4-pin M12 male and female

A shielded cable is required on the sensor side, with the shield tied to the blue wire. It needs an IO-Link master port; the IODD is available from Banner.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
