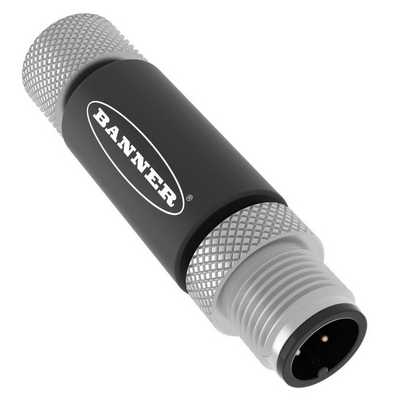

Signal converter S15C-B22-MQ, discrete I/O to Modbus, 12-30VDC, M12 4-pin

S15C-B22-MQ is a Banner S15C series in-line converter with two discrete channels that can each be set as NPN or PNP input or output. Channel states are read and written through Modbus registers over RS-485.

• Inputs and outputs: 2 discrete channels, NPN or PNP set per channel; output load 50 mA, ON-state voltage drop 2 V
• Communication: Modbus server, RS-485, default 19.2 kbit/s
• Supply: 12...30 VDC, max. 50 mA; pass-through current max. 1 A
• Housing: over-moulded PVC body, nickel-plated brass coupling nuts, 15x58 mm
• Environment: IP65, IP67, IP68, -40...+70 °C
• Connection: integral 4-pin M12 male and female

Turns a discrete sensor or actuator into a Modbus device for a DXM controller or a PLC with RS-485. Settings are made with Banner SNAP SIGNAL Configuration Software.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
