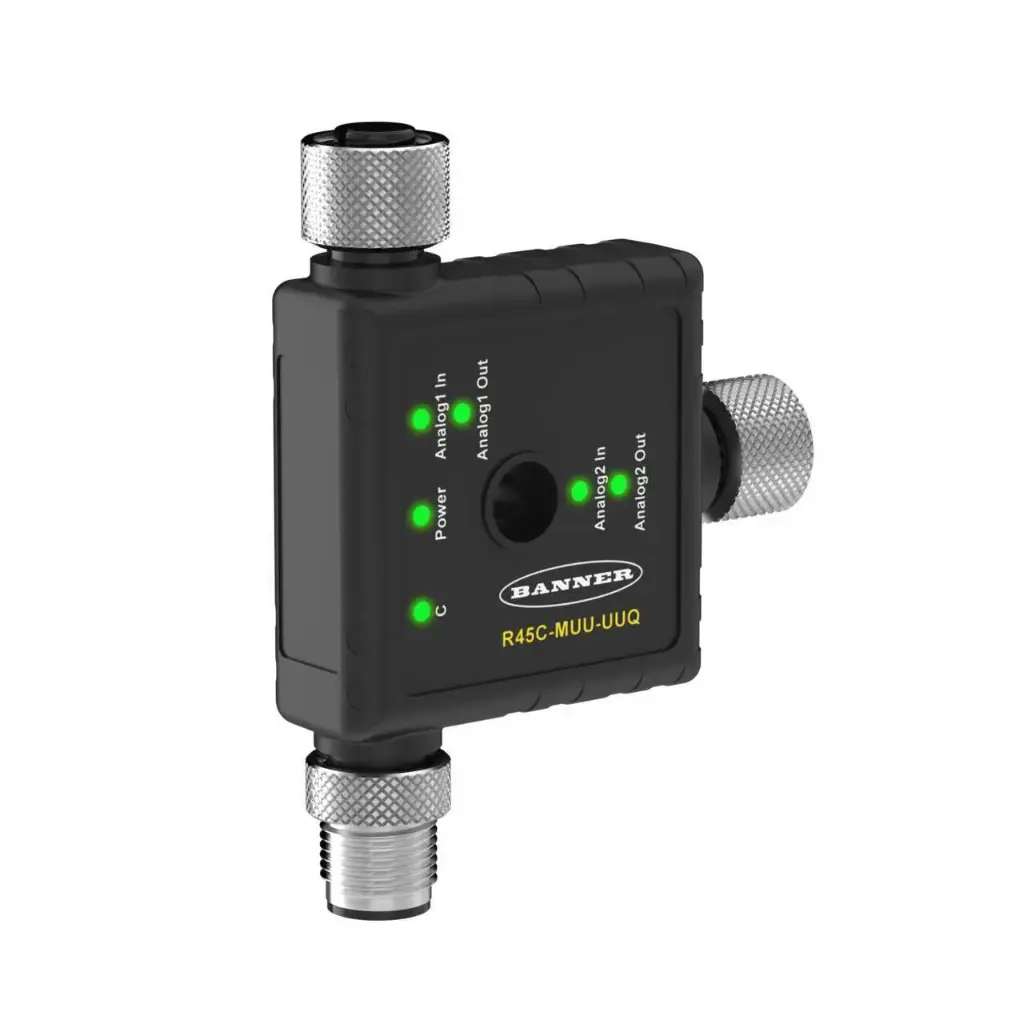

Signal converter R45C-MUU-UUQ, Modbus RTU, 2x 0-10V in/out, 12-30VDC, M12

R45C-MUU-UUQ is a Banner R45C series in-line converter with two analog analog voltage ports, each usable as input or output, and a Modbus RTU connection. Input values are written to Modbus registers, and values written to the output registers are produced as analog voltage.

• Precision: accuracy 0.5 %, resolution 14 bit
• Inputs and outputs: 2 ports, analog voltage in and out, range 0...11000 mV; input impedance approx. 14.3 kΩ; output load min. 2.5 kΩ
• Communication: Modbus RTU server, RS-485, default 19.2 kbit/s
• Supply: 12...30 VDC, max. 50 mA; pass-through current max. 4 A
• Housing: over-moulded PVC body, nickel-plated brass coupling nuts
• Environment: IP65, IP67, IP68, -40...+60 °C
• Connection: 5-pin M12 male (Modbus), 2x 4-pin M12 female (analog)

Out-of-range output values go to a selectable level after 2 s: Low (0 V or 3.5 mA), High (10.5 V or 20.5 mA) or Hold. Modbus settings are made with Banner SNAP SIGNAL Configuration Software.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
