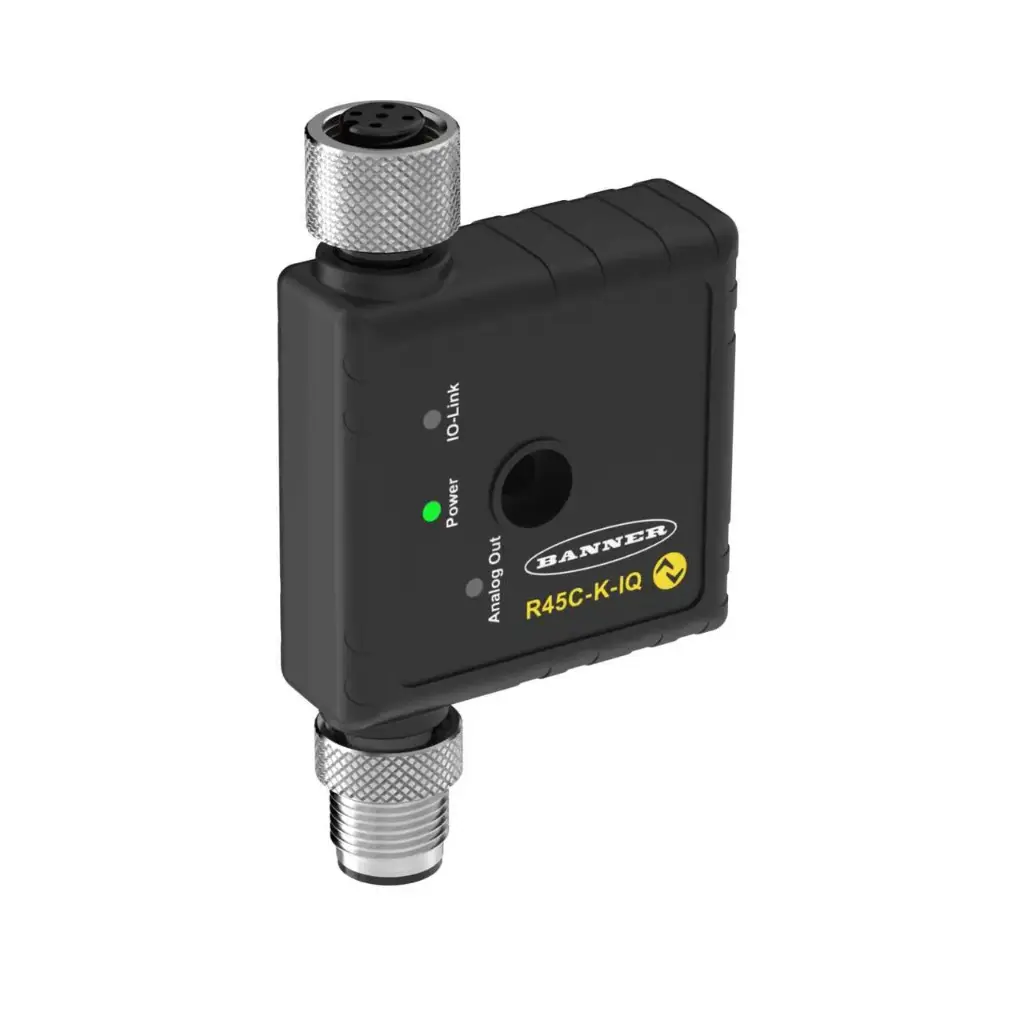

Signal converter R45C-K-IQ, IO-Link to analog current, 18-30VDC, M12 4-pin

R45C-K-IQ is a Banner R45C series in-line converter that turns an IO-Link process data value from the master into an analog current output. It lets an IO-Link master drive a valve, positioner or other device with a mA input.

• Precision: accuracy 0.5 %, resolution 14 bit
• Output: analog current, process data range 0...24000 µA; out-of-range level selectable Low 3.5 mA, High 20.5 mA or Hold
• Communication: IO-Link device (male side)
• Supply: 18...30 VDC, max. 50 mA; pass-through current max. 4 A
• Housing: over-moulded PVC body, nickel-plated brass coupling nuts
• Environment: IP65, IP67, IP68, -40...+70 °C
• Connection: integral 4-pin M12 male and female

If the process data value leaves the valid range, the output moves to the selected level after 2 s. It needs an IO-Link master port.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
